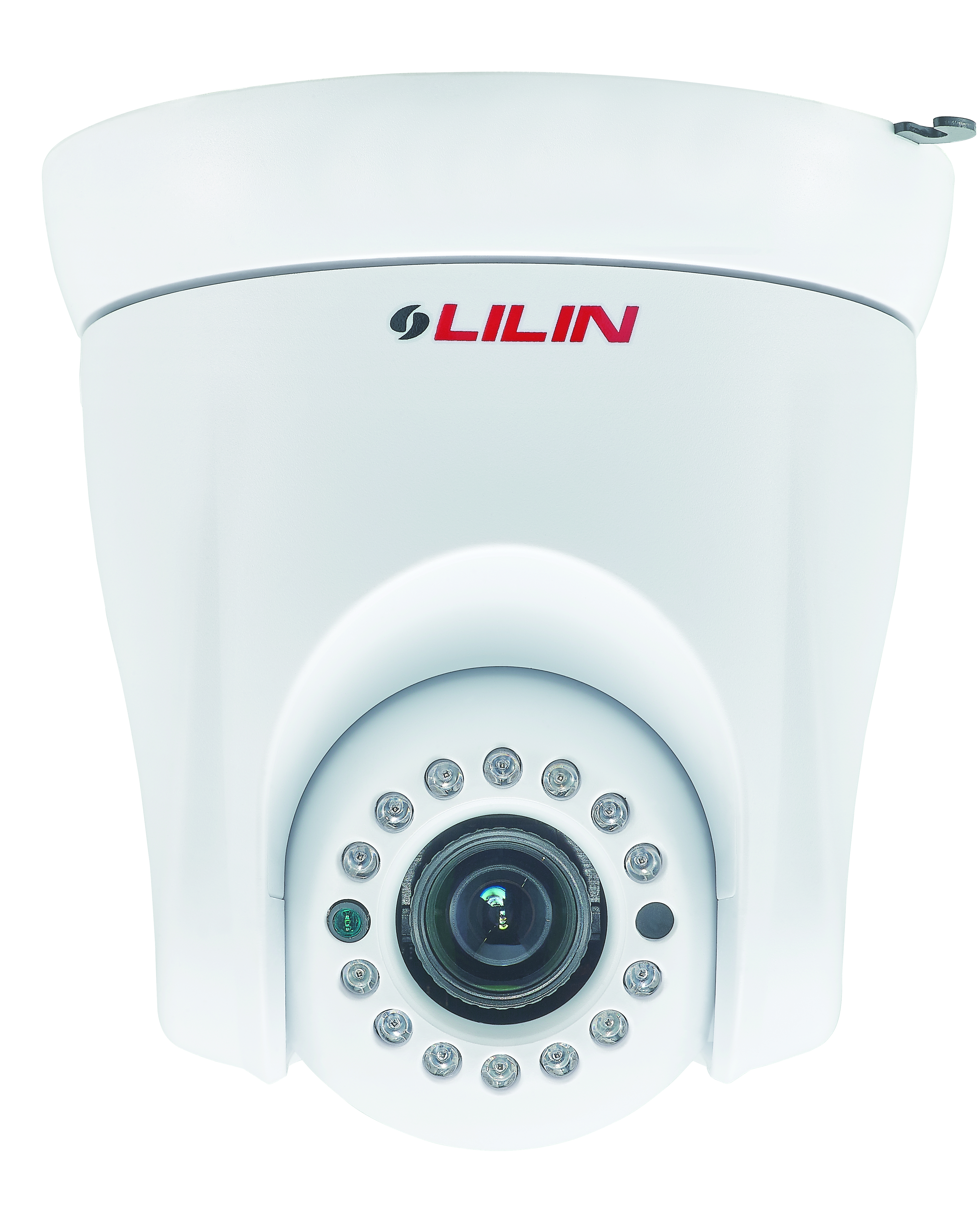

12X Super High Resolution IR Fast Dome Camera Series
Model:SP2124N / SP2128N / SP2124P / SP2128P
EOL
Features
- 12X Optical Zoom Lens (3.8 ~ 45.6mm)
- Privacy Zone Masking Function
- Higher Horizontal Resolution of 540 TV Line
- Auto Focus Lens
- Horizontal Flip Function
- Auto Panning Function with Auto Scan or Seq. or Tours
- 360° Endless Panning
- Multi-Protocol
Discontinued date
- 2019.01.31
Alternative models
- MR8322 / MR6422X
Specifications
Model | SP2124N |
Control interface | RS-485 Half-Duplex |
Auto Focus | Auto / One Push |
Zoom ratio | 12X Optical Zoom |
Minimum object distance | 1 m (Tele) |
Protocols | Multi - Protocol |
S / N Ratio | More Than 50 dB (AGC: Off) |
Pick Up Element | Sony 1/4” Super HAD CCD |
Effective pixels | 768(H) x 494(V) |
Scanning System | 2:1 Interlace |
Min. illumination/Low Light Mode (Colour) | Color : 0.3 Lux at F1.6,Mono : 0 Lux (IR On) |
Iris | ALC (Adjustable Output Target Level ) |
Angle of View | Wide : 65.4°( D ) 52.8°( H ) 39.7°( V) / Tele : 5.54°( D ) 4.49°( H ) 3.40°( V ) |
Max IR distance | 16M |
Infrared LED Wave Length | 850nm |
Infrared LED Angle | 30° |
Auto Gain Control | 0 – 36 dB Selectable |
White Balance | ATW / MWB Selectable |
Video output | CVBS 1.0 Vp-p / 75 ΩBNC |
Power Consumption | 10Watts |
System | NTSC |
Sync. Mode/ Synchronization | Internal |
Back Light Compensation (BLC) | On / Off Selectable |
Scanning Frequency | 15.734 KHz (H) , 59.94 Hz (V) |
Horizontal Resolution | Color : 540 TV Lines,Mono : 600 TV Lines |
Panning Range | 360° Endless |
Panning Mode | Manual , Auto , Manual Position , Sequential Position |
Panning Speed | Manual Approx : 0.5°/s – 90°/s 8 Steps , Preset Approx. 1°/s – 120°/s |
Tilting Range | 0° – 90° |
Tilting Mode | Manual , Auto , Manual Position , Sequential Position |
Tilting Speed | Manual Approx : 0.5°/s – 90°/s 8 Steps , Preset Approx. 1°/s – 120°/s |
Minimum Aperture Ratio | 1 : 1.6 (Wide) – 2.7 (Tele) |
Iris Range | F/1.6 – F/360 |
Control Function | Pan and Tilt / Zoom and focus / Iris and ICR / 128 Preset Position / Home Position |
Character Display | On / Off ( Preset ID : 16 Alphanumeric Characters , Zoom Ratio , Date / Time , Pan / Tilt Angle) |
Password Control / Keypad Lock | Camera Advance / Presets / Privacy Zones / Factory Initial |
Zoom Speed | 1-15 Selectable [ 15: Approx. 6.0 Second (Tele to Wide) in ManualMode] |
Focus Speed | 1-15 Selectable [ 15: Approx. 3.0 Second (Far to Near) in ManualMode] |
Day & Night | Day (Color) / Night (Mono) / Auto / Schedule |
Electrical Shutter | Auto / Manual Selectable (1/60 – 1/100,000 sec) |
Auto Mode | OFF / AUTO / SEQ / TOUR |
Privacy Zone | On/ Off Selectable (Up to 4 Zones Settings) |
Schedule Setting | Day & Night / Auto Mode / Daylight Savings Time |
Image Mirror | On/ Off Selectable |
Operating humidity | 0% – 90% |
Operating temperature | -10℃ – +50℃ ( 14℉ – 122℉ ) |
Dimensions | 142 mm (H) x 135 mm (D) |
Weight | 1000g |
Power Supply | AC 24V ±10% |
Focal Length | 3.8 mm – 45.6 mm |
Model | SP2128N |
Control interface | RS-485 Half-Duplex |
Auto Focus | Auto / One Push |
Zoom ratio | 12X Optical Zoom |
Minimum object distance | 1 m (Tele) |
Protocols | Multi - Protocol |
S / N Ratio | More Than 50 dB (AGC: Off) |
Pick Up Element | Sony 1/4” Super HAD CCD |
Effective pixels | 768(H) x 494(V) |
Scanning System | 2:1 Interlace |
Min. illumination/Low Light Mode (Colour) | Color : 0.3 Lux at F1.6,Mono : 0 Lux (IR On) |
Iris | ALC (Adjustable Output Target Level ) |
Angle of View | Wide : 65.4°( D ) 52.8°( H ) 39.7°( V) / Tele : 5.54°( D ) 4.49°( H ) 3.40°( V ) |
Max IR distance | 16M |
Infrared LED Wave Length | 850nm |
Infrared LED Angle | 30° |
Auto Gain Control | 0 – 36 dB Selectable |
White Balance | ATW / MWB Selectable |
Video output | CVBS 1.0 Vp-p / 75 ΩBNC |
Power Consumption | 10Watts |
System | NTSC |
Sync. Mode/ Synchronization | Internal |
Back Light Compensation (BLC) | On / Off Selectable |
Scanning Frequency | 15.734 KHz (H) , 59.94 Hz (V) |
Horizontal Resolution | Color : 540 TV Lines,Mono : 600 TV Lines |
Panning Range | 360° Endless |
Panning Mode | Manual , Auto , Manual Position , Sequential Position |
Panning Speed | Manual Approx : 0.5°/s – 90°/s 8 Steps , Preset Approx. 1°/s – 120°/s |
Tilting Range | 0° – 90° |
Tilting Mode | Manual , Auto , Manual Position , Sequential Position |
Tilting Speed | Manual Approx : 0.5°/s – 90°/s 8 Steps , Preset Approx. 1°/s – 120°/s |
Minimum Aperture Ratio | 1 : 1.6 (Wide) – 2.7 (Tele) |
Iris Range | F/1.6 – F/360 |
Control Function | Pan and Tilt / Zoom and focus / Iris and ICR / 128 Preset Position / Home Position |
Character Display | On / Off ( Preset ID : 16 Alphanumeric Characters , Zoom Ratio , Date / Time , Pan / Tilt Angle) |
Password Control / Keypad Lock | Camera Advance / Presets / Privacy Zones / Factory Initial |
Zoom Speed | 1-15 Selectable [ 15: Approx. 6.0 Second (Tele to Wide) in ManualMode] |
Focus Speed | 1-15 Selectable [ 15: Approx. 3.0 Second (Far to Near) in ManualMode] |
Day & Night | Day (Color) / Night (Mono) / Auto / Schedule |
Electrical Shutter | Auto / Manual Selectable (1/60 – 1/100,000 sec) |
Auto Mode | OFF / AUTO / SEQ / TOUR |
Privacy Zone | On/ Off Selectable (Up to 4 Zones Settings) |
Schedule Setting | Day & Night / Auto Mode / Daylight Savings Time |
Image Mirror | On/ Off Selectable |
Operating humidity | 0% – 90% |
Operating temperature | -10℃ – +50℃ ( 14℉ – 122℉ ) |
Dimensions | 142 mm (H) x 135 mm (D) |
Weight | 1000g |
Power Supply | AC 100V - 240V |
Focal Length | 3.8 mm – 45.6 mm |
Model | SP2124P |
Control interface | RS-485 Half-Duplex |
Auto Focus | Auto / One Push |
Zoom ratio | 12X Optical Zoom |
Minimum object distance | 1 m (Tele) |
Protocols | Multi - Protocol |
S / N Ratio | More Than 50 dB (AGC: Off) |
Pick Up Element | Sony 1/4” Super HAD CCD |
Effective pixels | 795(H) x 596(V) |
Scanning System | 2:1 Interlace |
Min. illumination/Low Light Mode (Colour) | Color : 0.3 Lux at F1.6,Mono : 0 Lux (IR On) |
Iris | ALC (Adjustable Output Target Level ) |
Angle of View | Wide : 65.4°( D ) 52.8°( H ) 39.7°( V) / Tele : 5.54°( D ) 4.49°( H ) 3.40°( V ) |
Max IR distance | 16M |
Infrared LED Wave Length | 850nm |
Infrared LED Angle | 30° |
Auto Gain Control | 0 – 36 dB Selectable |
White Balance | ATW / MWB Selectable |
Video output | CVBS 1.0 Vp-p / 75 ΩBNC |
Power Consumption | 10Watts |
System | PAL |
Sync. Mode/ Synchronization | Internal |
Back Light Compensation (BLC) | On / Off Selectable |
Scanning Frequency | 15.625KHz (H) , 50Hz (V) |
Horizontal Resolution | Color : 540 TV Lines,Mono : 600 TV Lines |
Panning Range | 360° Endless |
Panning Mode | Manual , Auto , Manual Position , Sequential Position |
Panning Speed | Manual Approx : 0.5°/s – 90°/s 8 Steps , Preset Approx. 1°/s – 120°/s |
Tilting Range | 0° – 90° |
Tilting Mode | Manual , Auto , Manual Position , Sequential Position |
Tilting Speed | Manual Approx : 0.5°/s – 90°/s 8 Steps , Preset Approx. 1°/s – 120°/s |
Minimum Aperture Ratio | 1 : 1.6 (Wide) – 2.7 (Tele) |
Iris Range | F/1.6 – F/360 |
Control Function | Pan and Tilt / Zoom and focus / Iris and ICR / 128 Preset Position / Home Position |
Character Display | On / Off ( Preset ID : 16 Alphanumeric Characters , Zoom Ratio , Date / Time , Pan / Tilt Angle) |
Password Control / Keypad Lock | Camera Advance / Presets / Privacy Zones / Factory Initial |
Zoom Speed | 1~15 Selectable [ 15: Approx. 6.0 Second (Tele to Wide) in ManualMode] |
Focus Speed | 1~15 Selectable [ 15: Approx. 3.0 Second (Far to Near) in ManualMode] |
Day & Night | Day (Color) / Night (Mono) / Auto / Schedule |
Electrical Shutter | Auto / Manual Selectable (1/50 – 1/100,000 sec) |
Auto Mode | OFF / AUTO / SEQ / TOUR |
Privacy Zone | On/ Off Selectable (Up to 4 Zones Settings) |
Schedule Setting | Day & Night / Auto Mode / Daylight Savings Time |
Image Mirror | On/ Off Selectable |
Operating humidity | 0% – 90% |
Operating temperature | -10℃ – +50℃ ( 14℉ – 122℉ ) |
Dimensions | 142 mm (H) x 135 mm (D) |
Weight | 1000g |
Power Supply | AC 24V ±10% |
Focal Length | 3.8 mm – 45.6 mm |
Model | SP2128P |
Control interface | RS-485 Half-Duplex |
Auto Focus | Auto / One Push |
Zoom ratio | 12X Optical Zoom |
Minimum object distance | 1 m (Tele) |
Protocols | Multi - Protocol |
S / N Ratio | More Than 50 dB (AGC: Off) |
Pick Up Element | Sony 1/4” Super HAD CCD |
Effective pixels | 795(H) x 596(V) |
Scanning System | 2:1 Interlace |
Min. illumination/Low Light Mode (Colour) | Color : 0.3 Lux at F1.6,Mono : 0 Lux (IR On) |
Iris | ALC (Adjustable Output Target Level ) |
Angle of View | Wide : 65.4°( D ) 52.8°( H ) 39.7°( V) / Tele : 5.54°( D ) 4.49°( H ) 3.40°( V ) |
Max IR distance | 16M |
Infrared LED Wave Length | 850nm |
Infrared LED Angle | 30° |
Auto Gain Control | 0 – 36 dB Selectable |
White Balance | ATW / MWB Selectable |
Video output | CVBS 1.0 Vp-p / 75 ΩBNC |
Power Consumption | 10Watts |
System | PAL |
Sync. Mode/ Synchronization | Internal |
Back Light Compensation (BLC) | On / Off Selectable |
Scanning Frequency | 15.625KHz (H) , 50Hz (V) |
Horizontal Resolution | Color : 540 TV Lines,Mono : 600 TV Lines |
Panning Range | 360° Endless |
Panning Mode | Manual , Auto , Manual Position , Sequential Position |
Panning Speed | Manual Approx : 0.5°/s – 90°/s 8 Steps , Preset Approx. 1°/s – 120°/s |
Tilting Range | 0° – 90° |
Tilting Mode | Manual , Auto , Manual Position , Sequential Position |
Tilting Speed | Manual Approx : 0.5°/s – 90°/s 8 Steps , Preset Approx. 1°/s – 120°/s |
Minimum Aperture Ratio | 1 : 1.6 (Wide) – 2.7 (Tele) |
Iris Range | F/1.6 – F/360 |
Control Function | Pan and Tilt / Zoom and focus / Iris and ICR / 128 Preset Position / Home Position |
Character Display | On / Off ( Preset ID : 16 Alphanumeric Characters , Zoom Ratio , Date / Time , Pan / Tilt Angle) |
Password Control / Keypad Lock | Camera Advance / Presets / Privacy Zones / Factory Initial |
Zoom Speed | 1-15 Selectable [ 15: Approx. 6.0 Second (Tele to Wide) in ManualMode] |
Focus Speed | 1-15 Selectable [ 15: Approx. 6.0 Second (Tele to Wide) in ManualMode] |
Day & Night | Day (Color) / Night (Mono) / Auto / Schedule |
Electrical Shutter | Auto / Manual Selectable (1/50 – 1/100,000 sec) |
Auto Mode | OFF / AUTO / SEQ / TOUR |
Privacy Zone | On/ Off Selectable (Up to 4 Zones Settings) |
Schedule Setting | Day & Night / Auto Mode / Daylight Savings Time |
Image Mirror | On/ Off Selectable |
Operating humidity | 0% – 90% |
Operating temperature | -10℃ – +50℃ ( 14℉ – 122℉ ) |
Dimensions | 142 mm (H) x 135 mm (D) |
Weight | 1000g |
Power Supply | AC 100V - 240V |
Focal Length | 3.8 mm – 45.6 mm |
Downloads
Classification | Description | Date | File Size | Downloads |
Catalogue | Catalogue- SP212 | 2023-07-12 | 1,052KB | |
Image | High-Resolution Image | 2023-05-30 | 7,605KB | |
Manual | PTZ Indoor Camera Installation Guide | 2017-03-31 | 39,105KB | |
Installation Guide | PTZ Indoor camera Quick Installation Guide | 2017-03-14 | 6,736KB |
