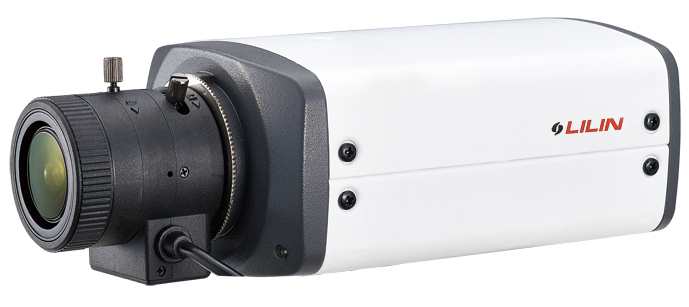

1080P Day & Night Box IP Camera
Model:IPG1022ESX3
Features
- Full HD 2 megapixel CMOS image sensor
- True H.264 AVC/MPEG-4 part 10 real-time video compression
- H.264 and Motion JPEG multi-profile video streaming
- 3D noise reduction (MCTF)
- 2D WDR function
- Digital PTZ supported
- Face / Tampering / Audio / Motion detection alarm function
- Day & Night (IR cut removable)
- 2-way audio supported
- Digital I/O : 1 in, 1 out
- ONVIF supported
- Support "Sense UP Plus" technology
- Support "Quadruple Streaming" technology
Discontinued date
- 2019.05.02
Alternative models
- MG1022
Description
As with all Pro series cameras, the IPG1022X incorporates Sense Up+, a unique technology that successfully delivers stunning video in low-light conditions. Utilizing intelligent image signal processing, AGC control, and 3D noise reduction, this model successfully delivers the ultimate low-light image without motion blur. Measuring less than 125mm in length, this latest addition to the range provides an internal solution suited to multiple applications.
The IPG1022X is capable of producing four independent video streams at a recording rate of up to 30FPS, meaning different streams can be set for different applications, depending on the individual user requirements. Further features include Region of Interest (ROI), 2-way audio, digital PTZ (pan-tilt-zoom), PoE (Power over Ethernet) and alarm activation by motion, tamper, face and audio detection.
Specifications
Model | IPG1022ESX3 |
Pick Up Element | 1/2.8" CMOS image sensor |
Effective pixels | 1984 (H) x 1105 (V) = 2,192,320 (pixel) |
Video Compression | H.264 , Motion JPEG |
Resolution | 1080P(1920 × 1080), 720P(1280 × 720), D1(720 × 480), CIF(352 × 240) |
Maximum Frame Rate | H.264 : up to 30 FPS @ 1920 x 1080, MJPEG : up to 30 FPS @ 720 x 480 ; H.264 : up to 30 FPS @ 1280 x 720, MJPEG : up to 30 FPS @ 352 x 240 ; H.264 : up to 30 FPS @ 1920 x 1080, MJPEG : up to 30 FPS @ 1280 x 720 ; H.264 : up to 30 FPS @ 720 x 480, MJPEG : up to 15 FPS @ 1920 x 1080 |
Focal Length | 3〜10.5mm (CS mount) |
Iris | F1.4 |
Angle of View | 100.1° – 35.8°(H), 79.2° – 21.3°(V), 132° – 35.5°(D) |
Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast |
Video bitrate | 128Kbps〜8Mbps ; Frame rate and bit rate controllable on-the-fly ; VBR / CBR / GOP supported |
Scanning System | Progressive scan |
Infrared Cut Filter | Colour (Day), Monochrome (Night), Auto, Schedule, External control |
Min. illumination/Low Light Mode (Colour) | 0.02 Lux at F1.4 (min. illuminatio) |
White Balance | Auto / tungsten / indoor / fluorescents1 / fluorescents2 / outdoor1 / outdoor2 |
Back Light Compensation (BLC) | Off / On |
Electrical Shutter | 1/30(1/25)s〜1/8000s |
Sense Up | Off / 1 frame / 2 frames / 3 frames / 7 frames |
Sense Up+ | Yes |
Auto Gain Control | 36 dB variable gain |
3D Noise Reduction | Off / 1〜32 selectable |
2D WDR | Off / Auto / x2 / x3 / x4 |
Privacy Masking | Off / on (4 zones) |
Other functions | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip |
Live Video Output | CVBS 1.0Vp-p, 75 ohm, BNC connector |
Audio Input / Output | Mono, 1.4 Vp-p, 50 kΩ , 3.5mm phone jack |
Encryption | Base64 HTTP encryption |
Access | Multiple user access levels with password protection |
User accounts | 10 user accounts available |
IP address filter | Yes |
Multi IP address | Yes |
User accounts | 8 simultaneous users |
ePTZ & Digital Zoom | Yes, ROI is supported |
OSD (On-Screen Display) | Text overly for date, time , and camera name |
Alarm event triggers | Face / tampering / audio / motion / alarm detection ; Image upload over FTP and E-mail by face / tampering / audio / motion detection |
Alarm event actions | Yes |
CPU | Embedded SoC ARM11, 528MHz, 256MB DDR2, 256MB flash memory |
Firmware | Firmware upgrade via HTTP ; Firmware available to download at meritlilin.com |
Network Interface/Ethernet | 10Mbps / 100Mbps Base-T, RJ-45 |
CE | Yes |
FCC | Yes |
OS requirement | Microsoft® Internet Explorer® 6 and later |
Web browser | Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8 |
CPU requirement | Intel Pentium 4 1.8GHz or above |
RAM requirement | 1GB or above ,Independent Display Card |
Protocols | IPv4, IPv6, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, SNMP, SIP, Bonjour |
Mobile Application | Integrated to LILIN mobile app (LILIN Pro) ; iPhone, iPad, Android support |
Video Management | ONVIF Profile S LILIN CMX3.6 NAV 1.0 Third party VMS through LILIN HTTP API |
Video Display | LILIN Universal ActiveX & LILIN Java Applet |
OS | Embedded Linux 2.6.32 |
Audio | 2-way audio , G.711 / PCM |
SD Card (recording) | Support Micro SD/SDHC card for circular recording (card is not included) |
Alarm Input / output | Digital 1 input (TTL, +3〜5VDC) / 1 Output (MOS Relay contact N.O., Load max. 40VDC/300mA) |
Operating temperature | -25°C〜+50°C (-13°F〜122°F) |
Dimensions | 70mm (W) x 50mm (H) x 110mm (D) |
Weight | 380g approx. |
Power Supply | DC12V ±10%。PoE (IEEE 802.3af compliant) |
PoE | PoE |
Power Consumption | DC12V, 6W / PoE, 7.5W |
