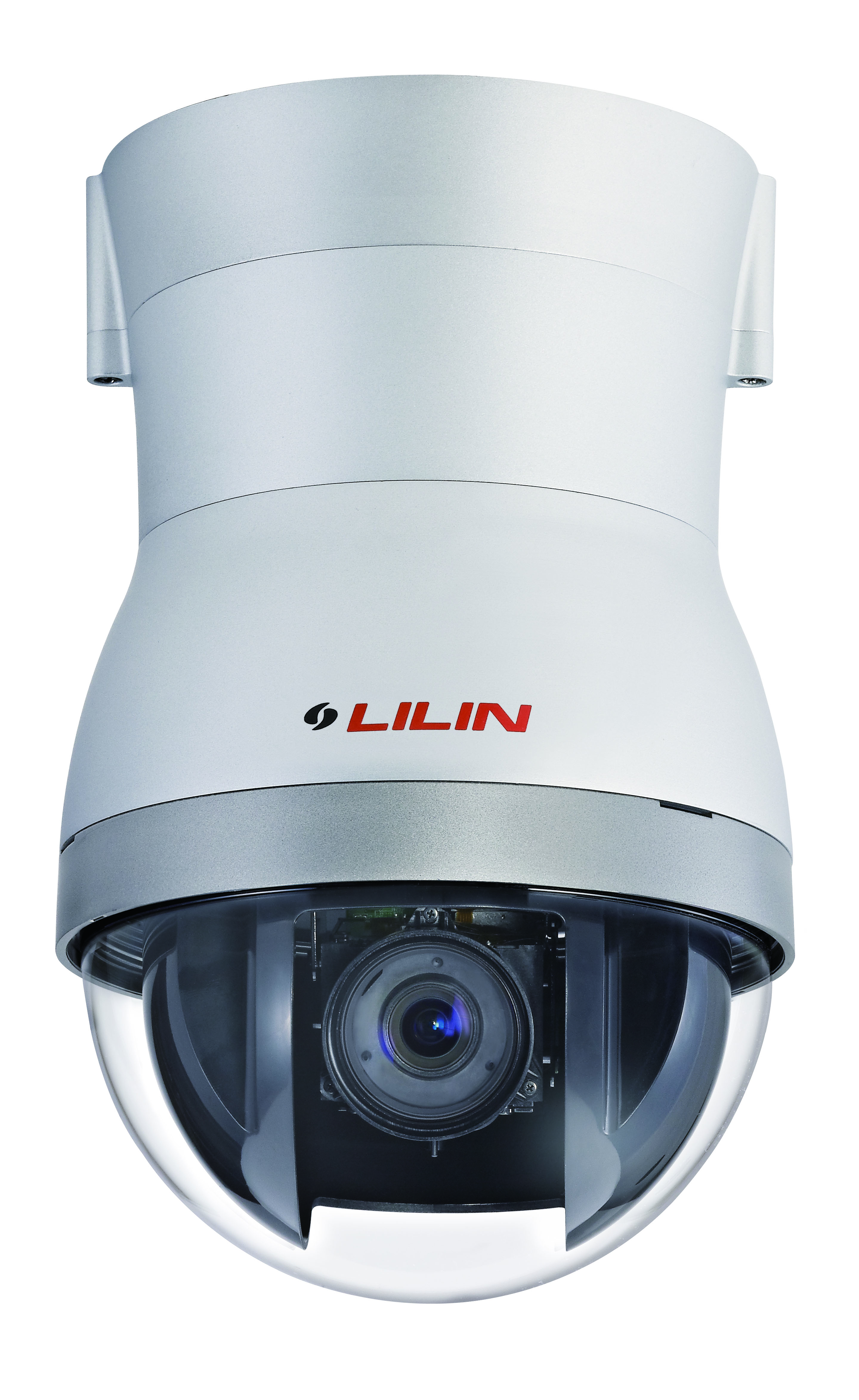

36X D/N WDR 650TVL Fast Dome IP Camera
Model:IPS9364N / IPS9368N / IPS9364P / IPS9368P
Features
- 36X Optical Zoom Lens(3.3–119mm)
- 256X Digital Zoom
- 650 Horizontal TV Lines
- True H.264 AVC/MPEG-4 part 10 real-time video compression
- H.264 and Motion JPEG multi-profile video streaming
- Wide Dynamic Range
- 2D+3D Digital Noise Reduction
- High Light Compensation
- Digital Image Stabilizer
- Dynamic Privacy Zone Masking
- Up to 128 Programmable Preset Positions
- 2-way audio supported
- ONVIF supported
Discontinued date
- 2018.06.26
Alternative models
- PSD4624EX20
Description
The IPS9364 / IPS9368 is 36X Day & Night WDR 650TVL Speed Dome IP Camera. The high-speed dome is capable of streaming HD video at up to 30FPS. Featuring LILIN’s Wide Dynamic Range (WDR) feature, the IPS9364 / IPS9368 captures highlights and shadows simultaneously, eliminating pixilation and smear. Combine this with 3D noise reduction technology and adaptive tone reproduction and the contrast of images in bright or dark areas is dramatically improved. Capable of making 360° continuous rotations, users can accurately position the camera to identify specific targets. The 36x optical zoom gives the IPS9364 / IPS9368 an impressive range. With a focal length of 3.3〜119mm, 256 digital zoom, 650horizontal TV lines, and up to 128 programmable preset positions, the IPS9364/IPS9368 is ideal for numerous applications.
Further features include privacy zones, comprehensive scheduling, 2-way audio, weighted mode, digital PTZ, alarm activation by motion, audio detection, and 6 digital inputs. Connecting the cameras to your IP system is simple. Pair them with our NVR Touch series, and the installation wizard, WS Discovery, will locate all IP cameras on the network and generate a snapshot image of each channel. This will help with identification and greatly speed up camera setup.
Specifications
Model | IPS9364N |
Pick Up Element | Sony 1/4" 960H |
Effective pixels | Effective pixels : 976(H) x 494(V) ; Total number of pixel : 1028(H) x 508(V) |
Video Compression | H.264 , Motion JPEG |
Resolution | 960H : 960 × 480 (NTSC) / 960 × 576 (PAL) , D1 : 720 × 480 , CIF : 352 × 240 |
Maximum Frame Rate | H.264 : up to 30/25 FPS at 960H resolution ; Motion JPEG : up to 30/25 FPS at D1 resolution |
Focal Length | 3.3 mm – 119 mm |
Iris | F1.6〜36.2 , Close ; ALC ( Adjustable output target level ) / manual |
Angle of View | Wide : 69.52° ( D ) 58.00° ( H ) 45.30° ( V ) / Tele : 2.20° ( D ) 1.72° ( H ) 1.38° ( V ) |
Auto Focus | Auto / One push |
Zoom ratio | 36X optical zoom |
Minimum object distance | 1.5m (Tele) |
Digital zoom | 256X |
Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast |
Video bitrate | 128 Kbps to 5 Mbps ; Frame rate and bitrate controllable on-the-fly ; VBR / CBR / GOP supported |
Scanning System | 2:1 Interlace |
Infrared Cut Filter | Colour (Day), Monochrome (Night), Auto, Schedule |
Min. illumination/Low Light Mode (Colour) | Color : 0.1 Lux at F1.4 , Mono : 0.05 Lux at F1.4 |
White Balance | ATW / AWC / manual (1800K〜10500K) |
Back Light Compensation (BLC) | OFF / ON |
Electrical Shutter | 1/60 to 1/100,000 |
Slow Shutter Speed | Up to 15 field |
Auto Gain Control | Off /low / middle / high |
3D Noise Reduction | Off /low / middle / high |
2D WDR | OFF / ON (60 dB) |
Sharpness | Yes |
Privacy Masking | Off / on selectable ( up to 8 zones settings) |
Live Video Output | CVBS 1.0 Vp-p / 75 Ω BNC |
S / N Ratio | More Than 50 dB ( AGC : Off ) |
Horizontal Resolution | Color : 650 TV Lines , Mono : 700 TV Lines |
Panning Range | 360° Endless |
Panning Speed | Manual approx. 0.15°/s〜120°/s 8 Steps, 16 Steps / Preset approx. 1°/s〜255°/s, Alarm Trigger Speed 360°/s |
Panning Mode | Manual , Auto , Manual Position , Sequential Position |
Tilting Range | -6°〜96° |
Tilting Speed | Manual approx. 0.15°/s〜120°/s 8 Steps, 16 Steps / Preset approx. 1°/s 〜255°/s, Alarm Trigger Speed 360°/s |
Tilting Mode | Manual , Auto , Manual Position , Sequential Position |
Minimum Aperture Ratio | 1 : 1.4 (Wide)〜4.2 (Tele) |
Scanning Frequency | 15.734KHz(H) / 60Hz(V) |
Control Function | Pan and tilt / zoom and focus / iris and icr / 128 preset position / home position / patrol |
Zoom Speed | Slow / mid. / Fast Selectable [ fast : approx. 7.0 second (tele to wide) in manual mode ] |
Focus Speed | Slow / mid. / Fast Selectable [ fast : approx. 7.0 second (far to near) in manual mode ] |
Exposure Mode | Auto / Manual |
Digital image stabilization | Off / on |
HLC ( High Light Compensation ) | Off / on / auto |
Auto Mode | OFF / AUTO / SEQ / TOUR / PATROL( stop / play / learn) |
PTZ Control | Pan, tilt, zoom in / out, absolute position, and video-click-n-move |
PTZ preset scheduling | Yes, via web interface |
PTZ protocol | LILIN ( MLP1,MLP2 ) / PELCO-D / PELCO-P / Panasonic / Kalatel |
Schedule Setting | Off /low / middle / high |
Image Effects | Off / V-flip / mirror / rotate |
Data Communication | RS-485 Transmission |
Encryption | Base64 HTTP encryption |
Access | Multiple user access levels with password protection |
User accounts | 10 user accounts available |
IP address filter | Yes |
Multi IP address | Yes |
User accounts | 8 simultaneous users |
ePTZ & Digital Zoom | 256X |
Character Display | On / off ( preset id : 16 alphanumeric characters , zoom ratio , alarm message , date / time , pan / tilt angle ) |
Password Control / Keypad Lock | Function setup |
ATR ( Adaptive tone reproduction ) | Off / on (Low / middle / high ) |
Alarm event triggers | Image upload over FTP and E-mail by alarm / motion detection |
Alarm event actions | FTP,SMTP, HTTP post, SD card, SAMBA |
CPU | Embedded SoC ARM11, 528MHz, 256MB DDR2, 256MB flash memory |
Firmware | Firmware upgrade via HTTP ; Firmware available to download at meritlilin.com |
Network Interface/Ethernet | 10Mbps / 100Mbps , RJ-45 |
CE | Yes |
FCC | Yes |
OS requirement | Windows 2000 , Windows XP , Windows Vista, Windows 7 |
Web browser | Microsoft® Internet Explorer® 6.0 or later |
CPU requirement | Intel Pentium 4 1.8GHz or above |
RAM requirement | 1GB or above ,Independent Display Card |
Protocols | IP, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, Telnet, RTSP, RTCP, ONVIF Profile S, ICMP, IGMP ; LILIN ( MLP1,MLP2 ) / PELCO-D / PELCO-P / Panasonic / Kalatel。LILIN ( MLP1,MLP2 ) / PELCO-D / PELCO-P / Panasonic / Kalatel |
Mobile Application | Integrated to LILIN mobile app (LILIN Pro) ; iPhone, iPad, Android support |
Video Management | ONVIF Profile S ; LILIN CMX3.6 NAV 1.0 ; Third party VMS through LILIN HTTP API |
Video Display | LILIN Universal ActiveX & LILIN Java Applet |
OS | Embedded Linux 2.6.32 |
Audio | 2-way audio , G.711 / PCM |
Alarm Input / output | 3 input [ Alarm in 1 − 3 ( NC / NO ) (TTL 5VDC)], 1 output ( Alarm out NC / NO ) (0.5A 120VAC,1A 24VAC) |
Operating temperature | -10°C〜+ 50°C ( 14°F〜122°F ) |
Operating humidity | 0%〜90% |
Sync. Mode/ Synchronization | Internal / line lock selectable |
System | NTSC |
Dimensions | Ø 155 mm x 245 mm |
Weight | 2300g approx. |
Power Supply | AC24V |
Power Consumption | 15W |
Model | IPS9368N |
Pick Up Element | Sony 1/4" 960H |
Effective pixels | Effective pixels : 976(H) x 494(V) ; Total number of pixel : 1028(H) x 508(V) |
Video Compression | H.264 , Motion JPEG |
Resolution | 960H : 960 × 480 (NTSC) / 960 × 576 (PAL) , D1 : 720 × 480 , CIF : 352 × 240 |
Maximum Frame Rate | H.264 : up to 30/25 FPS at 960H resolution ; Motion JPEG : up to 30/25 FPS at D1 resolution |
Focal Length | 3.3 mm – 119 mm |
Iris | F1.6〜36.2 , Close ; ALC ( Adjustable output target level ) / manual |
Angle of View | Wide : 69.52° ( D ) 58.00° ( H ) 45.30° ( V ) / Tele : 2.20° ( D ) 1.72° ( H ) 1.38° ( V ) |
Auto Focus | Auto / One push |
Zoom ratio | 36X optical zoom |
Minimum object distance | 1.5m (Tele) |
Digital zoom | 256X |
Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast |
Video bitrate | 128 Kbps to 5 Mbps ; Frame rate and bitrate controllable on-the-fly ; VBR / CBR / GOP supported |
Scanning System | 2:1 Interlace |
Infrared Cut Filter | Colour (Day), Monochrome (Night), Auto, Schedule |
Min. illumination/Low Light Mode (Colour) | Color : 0.1 Lux at F1.4 , Mono : 0.05 Lux at F1.4 |
White Balance | ATW / AWC / manual (1800K〜10500K) |
Back Light Compensation (BLC) | OFF / ON |
Electrical Shutter | 1/60 to 1/100,000 |
Slow Shutter Speed | Up to 15 field |
Auto Gain Control | Off /low / middle / high |
3D Noise Reduction | Off /low / middle / high |
2D WDR | OFF / ON (60 dB) |
Sharpness | Yes |
Privacy Masking | Off / on selectable ( up to 8 zones settings) |
Live Video Output | CVBS 1.0 Vp-p / 75 Ω BNC |
S / N Ratio | More Than 50 dB ( AGC : Off ) |
Horizontal Resolution | Color : 650 TV Lines , Mono : 700 TV Lines |
Panning Range | 360° Endless |
Panning Speed | Manual approx. 0.15°/s〜120°/s 8 Steps, 16 Steps / Preset approx. 1°/s〜255°/s, Alarm Trigger Speed 360°/s |
Panning Mode | Manual , Auto , Manual Position , Sequential Position |
Tilting Range | -6°〜96° |
Tilting Speed | Manual approx. 0.15°/s〜120°/s 8 Steps, 16 Steps / Preset approx. 1°/s 〜255°/s, Alarm Trigger Speed 360°/s |
Tilting Mode | Manual , Auto , Manual Position , Sequential Position |
Minimum Aperture Ratio | 1 : 1.4 (Wide)〜4.2 (Tele) |
Scanning Frequency | 15.734KHz(H) / 60Hz(V) |
Control Function | Pan and tilt / zoom and focus / iris and icr / 128 preset position / home position / patrol |
Zoom Speed | Slow / mid. / Fast Selectable [ fast : approx. 7.0 second (tele to wide) in manual mode ] |
Focus Speed | Slow / mid. / Fast Selectable [ fast : approx. 7.0 second (far to near) in manual mode ] |
Exposure Mode | Auto / Manual |
Digital image stabilization | Off / on |
HLC ( High Light Compensation ) | Off / on / auto |
Auto Mode | OFF / AUTO / SEQ / TOUR / PATROL( stop / play / learn) |
PTZ Control | Pan, tilt, zoom in / out, absolute position, and video-click-n-move |
PTZ preset scheduling | Yes, via web interface |
PTZ protocol | LILIN ( MLP1,MLP2 ) / PELCO-D / PELCO-P / Panasonic / Kalatel |
Schedule Setting | Off /low / middle / high |
Image Effects | Off / V-flip / mirror / rotate |
Data Communication | RS-485 Transmission |
Encryption | Base64 HTTP encryption |
Access | Multiple user access levels with password protection |
User accounts | 10 user accounts available |
IP address filter | Yes |
Multi IP address | Yes |
User accounts | imultaneous users |
ePTZ & Digital Zoom | 256X |
Character Display | On / off ( preset id : 16 alphanumeric characters , zoom ratio , alarm message , date / time , pan / tilt angle ) |
Password Control / Keypad Lock | Function setup |
ATR ( Adaptive tone reproduction ) | Off / on (Low / middle / high ) |
Alarm event triggers | Image upload over FTP and E-mail by alarm / motion detection |
Alarm event actions | FTP,SMTP, HTTP post, SD card, SAMBA |
CPU | Embedded SoC ARM11, 528MHz, 256MB DDR2, 256MB flash memory |
Firmware | Firmware upgrade via HTTP ; Firmware available to download at meritlilin.com |
Network Interface/Ethernet | 10Mbps / 100Mbps , RJ-45 |
CE | Yes |
FCC | Yes |
OS requirement | Windows 2000 , Windows XP , Windows Vista, Windows 7 |
Web browser | Microsoft® Internet Explorer® 6.0 or later |
CPU requirement | Intel Pentium 4 1.8GHz or above |
RAM requirement | 1GB or above ,Independent Display Card |
Protocols | IP, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, Telnet, RTSP, RTCP, ONVIF Profile S, ICMP, IGMP ; LILIN ( MLP1,MLP2 ) / PELCO-D / PELCO-P / Panasonic / Kalatel。LILIN ( MLP1,MLP2 ) / PELCO-D / PELCO-P / Panasonic / Kalatel |
Mobile Application | Integrated to LILIN mobile app (LILIN Pro) ; iPhone, iPad, Android support |
Video Management | ONVIF Profile S ; LILIN CMX3.6 NAV 1.0 ; Third party VMS through LILIN HTTP API |
Video Display | LILIN Universal ActiveX & LILIN Java Applet |
OS | Embedded Linux 2.6.32 |
Audio | 2-way audio , G.711 / PCM |
Alarm Input / output | 3 input [ Alarm in 1 − 3 ( NC / NO ) (TTL 5VDC)], 1 output ( Alarm out NC / NO ) (0.5A 120VAC,1A 24VAC) |
Operating temperature | -10°C〜+ 50°C ( 14°F〜122°F ) |
Operating humidity | 0%〜90% |
Sync. Mode/ Synchronization | Internal / line lock selectable |
System | NTSC |
Dimensions | Ø 155 mm x 245 mm |
Weight | 2300g approx. |
Power Supply | AC100〜240V |
Power Consumption | 15W |
Model | IPS9364P |
Pick Up Element | Sony 1/4" 960H |
Effective pixels | Effective pixels : 976(H) x 582(V) ; Total number of pixel : 1028(H) x 596(V) |
Video Compression | H.264 , Motion JPEG |
Resolution | 960H : 960 × 480 (NTSC) / 960 × 576 (PAL) , D1 : 720 × 480 , CIF : 352 × 240 |
Maximum Frame Rate | H.264 : up to 30/25 FPS at 960H resolution ; Motion JPEG : up to 30/25 FPS at D1 resolution |
Focal Length | 3.3 mm – 119 mm |
Iris | F1.6〜36.2 , Close ; ALC ( Adjustable output target level ) / manual |
Angle of View | Wide : 69.52° ( D ) 58.00° ( H ) 45.30° ( V ) / Tele : 2.20° ( D ) 1.72° ( H ) 1.38° ( V ) |
Auto Focus | Auto / One push |
Zoom ratio | 36X optical zoom |
Minimum object distance | 1.5m (Tele) |
Digital zoom | 256X |
Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast |
Video bitrate | 128 Kbps to 5 Mbps ; Frame rate and bitrate controllable on-the-fly ; VBR / CBR / GOP supported |
Scanning System | 2:1 Interlace |
Infrared Cut Filter | Colour (Day), Monochrome (Night), Auto, Schedule |
Min. illumination/Low Light Mode (Colour) | Color : 0.1 Lux at F1.4 , Mono : 0.05 Lux at F1.4 |
White Balance | ATW / AWC / manual (1800K〜10500K) |
Back Light Compensation (BLC) | OFF / ON |
Electrical Shutter | 1/50 to 1/100,000 |
Slow Shutter Speed | Up to 15 field |
Auto Gain Control | Off /low / middle / high |
3D Noise Reduction | Off /low / middle / high |
2D WDR | OFF / ON (60 dB) |
Sharpness | Yes |
Privacy Masking | Off / on selectable ( up to 8 zones settings) |
Live Video Output | CVBS 1.0 Vp-p / 75 Ω BNC |
S / N Ratio | More Than 50 dB ( AGC : Off ) |
Horizontal Resolution | Color : 650 TV Lines , Mono : 700 TV Lines |
Panning Range | 360° Endless |
Panning Speed | Manual approx. 0.15°/s〜120°/s 8 Steps, 16 Steps / Preset approx. 1°/s〜255°/s, Alarm Trigger Speed 360°/s |
Panning Mode | Manual , Auto , Manual Position , Sequential Position |
Tilting Range | -6°〜96° |
Tilting Speed | Manual approx. 0.15°/s〜120°/s 8 Steps, 16 Steps / Preset approx. 1°/s 〜255°/s, Alarm Trigger Speed 360°/s |
Tilting Mode | Manual , Auto , Manual Position , Sequential Position |
Minimum Aperture Ratio | 1 : 1.4 (Wide)〜4.2 (Tele) |
Scanning Frequency | 15.625KHz(H) / 50Hz(V) |
Control Function | Pan and tilt / zoom and focus / iris and icr / 128 preset position / home position / patrol |
Zoom Speed | Slow / mid. / Fast Selectable [ fast : approx. 7.0 second (tele to wide) in manual mode ] |
Focus Speed | Slow / mid. / Fast Selectable [ fast : approx. 7.0 second (far to near) in manual mode ] |
Exposure Mode | Auto / Manual |
Digital image stabilization | Off / on |
HLC ( High Light Compensation ) | Off / on / auto |
Auto Mode | OFF / AUTO / SEQ / TOUR / PATROL( stop / play / learn) |
PTZ Control | Pan, tilt, zoom in / out, absolute position, and video-click-n-move |
PTZ preset scheduling | Yes, via web interface |
PTZ protocol | LILIN ( MLP1,MLP2 ) / PELCO-D / PELCO-P / Panasonic / Kalatel |
Schedule Setting | Off /low / middle / high |
Image Effects | Off / V-flip / mirror / rotate |
Data Communication | RS-485 Transmission |
Encryption | Base64 HTTP encryption |
Access | Multiple user access levels with password protection |
User accounts | 10 user accounts available |
IP address filter | Yes |
Multi IP address | Yes |
User accounts | 8 simultaneous users |
ePTZ & Digital Zoom | 256X |
Character Display | On / off ( preset id : 16 alphanumeric characters , zoom ratio , alarm message , date / time , pan / tilt angle ) |
Password Control / Keypad Lock | Function setup |
ATR ( Adaptive tone reproduction ) | Off / on (Low / middle / high ) |
Alarm event triggers | Image upload over FTP and E-mail by alarm / motion detection |
Alarm event actions | FTP,SMTP, HTTP post, SD card, SAMBA |
CPU | Embedded SoC ARM11, 528MHz, 256MB DDR2, 256MB flash memory |
Firmware | Firmware upgrade via HTTP ; Firmware available to download at meritlilin.com |
Network Interface/Ethernet | 10Mbps / 100Mbps , RJ-45 |
CE | Yes |
FCC | Yes |
OS requirement | Windows 2000 , Windows XP , Windows Vista, Windows 7 |
Web browser | Microsoft® Internet Explorer® 6.0 or later |
CPU requirement | Intel Pentium 4 1.8GHz or above |
RAM requirement | 1GB or above ,Independent Display Card |
Protocols | IP, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, Telnet, RTSP, RTCP, ONVIF Profile S, ICMP, IGMP ; LILIN ( MLP1,MLP2 ) / PELCO-D / PELCO-P / Panasonic / Kalatel。LILIN ( MLP1,MLP2 ) / PELCO-D / PELCO-P / Panasonic / Kalatel |
Mobile Application | Integrated to LILIN mobile app (LILIN Pro) ; iPhone, iPad, Android support |
Video Management | ONVIF Profile S ; LILIN CMX3.6 NAV 1.0 ; Third party VMS through LILIN HTTP API |
Video Display | LILIN Universal ActiveX & LILIN Java Applet |
OS | Embedded Linux 2.6.32 |
Audio | 2-way audio , G.711 / PCM |
Alarm Input / output | 3 input [ Alarm in 1 − 3 ( NC / NO ) (TTL 5VDC)], 1 output ( Alarm out NC / NO ) (0.5A 120VAC,1A 24VAC) |
Operating temperature | -10°C〜+ 50°C ( 14°F〜122°F ) |
Operating humidity | 0%〜90% |
Sync. Mode/ Synchronization | Internal / line lock selectable |
System | PAL |
Dimensions | Ø 155 mm x 245 mm |
Weight | 2300g approx. |
Power Supply | AC24V |
Power Consumption | 15W |
Model | IPS9368P |
Pick Up Element | Sony 1/4" 960H |
Effective pixels | Effective pixels : 976(H) x 582(V) ; Total number of pixel : 1028(H) x 596(V) |
Video Compression | H.264 , Motion JPEG |
Resolution | 960H : 960 × 480 (NTSC) / 960 × 576 (PAL) , D1 : 720 × 480 , CIF : 352 × 240 |
Maximum Frame Rate | H.264 : up to 30/25 FPS at 960H resolution ; Motion JPEG : up to 30/25 FPS at D1 resolution |
Focal Length | 3.3 mm – 119 mm |
Iris | F1.6〜36.2 , Close ; ALC ( Adjustable output target level ) / manual |
Angle of View | Wide : 69.52° ( D ) 58.00° ( H ) 45.30° ( V ) / Tele : 2.20° ( D ) 1.72° ( H ) 1.38° ( V ) |
Auto Focus | Auto / One push |
Zoom ratio | 36X optical zoom |
Minimum object distance | 1.5m (Tele) |
Digital zoom | 256X |
Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast |
Video bitrate | 128 Kbps to 5 Mbps ; Frame rate and bitrate controllable on-the-fly ; VBR / CBR / GOP supported |
Scanning System | 2:1 Interlace |
Infrared Cut Filter | Colour (Day), Monochrome (Night), Auto, Schedule |
Min. illumination/Low Light Mode (Colour) | Color : 0.1 Lux at F1.4 , Mono : 0.05 Lux at F1.4 |
White Balance | ATW / AWC / manual (1800K〜10500K) |
Back Light Compensation (BLC) | OFF / ON |
Electrical Shutter | 1/50 to 1/100,000 |
Slow Shutter Speed | Up to 15 field |
Auto Gain Control | Off /low / middle / high |
3D Noise Reduction | Off /low / middle / high |
2D WDR | OFF / ON (60 dB) |
Sharpness | Yes |
Privacy Masking | Off / on selectable ( up to 8 zones settings) |
Live Video Output | CVBS 1.0 Vp-p / 75 Ω BNC |
S / N Ratio | More Than 50 dB ( AGC : Off ) |
Horizontal Resolution | Color : 650 TV Lines , Mono : 700 TV Lines |
Panning Range | 360° Endless |
Panning Speed | Manual approx. 0.15°/s〜120°/s 8 Steps, 16 Steps / Preset approx. 1°/s〜255°/s, Alarm Trigger Speed 360°/s |
Panning Mode | Manual , Auto , Manual Position , Sequential Position |
Tilting Range | -6°〜96° |
Tilting Speed | Manual approx. 0.15°/s〜120°/s 8 Steps, 16 Steps / Preset approx. 1°/s 〜255°/s, Alarm Trigger Speed 360°/s |
Tilting Mode | Manual , Auto , Manual Position , Sequential Position |
Minimum Aperture Ratio | 1 : 1.4 (Wide)〜4.2 (Tele) |
Scanning Frequency | 15.625KHz(H) / 50Hz(V) |
Control Function | Pan and tilt / zoom and focus / iris and icr / 128 preset position / home position / patrol |
Zoom Speed | Slow / mid. / Fast Selectable [ fast : approx. 7.0 second (tele to wide) in manual mode ] |
Focus Speed | Slow / mid. / Fast Selectable [ fast : approx. 7.0 second (far to near) in manual mode ] |
Exposure Mode | Auto / Manual |
Digital image stabilization | Off / on |
HLC ( High Light Compensation ) | Off / on / auto |
Auto Mode | OFF / AUTO / SEQ / TOUR / PATROL( stop / play / learn) |
PTZ Control | Pan, tilt, zoom in / out, absolute position, and video-click-n-move |
PTZ preset scheduling | Yes, via web interface |
PTZ protocol | LILIN ( MLP1,MLP2 ) / PELCO-D / PELCO-P / Panasonic / Kalatel |
Schedule Setting | Off /low / middle / high |
Image Effects | Off / V-flip / mirror / rotate |
Data Communication | RS-485 Transmission |
Encryption | Base64 HTTP encryption |
Access | Multiple user access levels with password protection |
User accounts | 10 user accounts available |
IP address filter | Yes |
Multi IP address | Yes |
User accounts | 8 simultaneous users |
ePTZ & Digital Zoom | 256X |
Character Display | On / off ( preset id : 16 alphanumeric characters , zoom ratio , alarm message , date / time , pan / tilt angle ) |
Password Control / Keypad Lock | Function setup |
ATR ( Adaptive tone reproduction ) | Off / on (Low / middle / high ) |
Alarm event triggers | Image upload over FTP and E-mail by alarm / motion detection |
Alarm event actions | FTP,SMTP, HTTP post, SD card, SAMBA |
CPU | Embedded SoC ARM11, 528MHz, 256MB DDR2, 256MB flash memory |
Firmware | Firmware upgrade via HTTP ; Firmware available to download at meritlilin.com |
Network Interface/Ethernet | 10Mbps / 100Mbps , RJ-45 |
CE | Yes |
FCC | Yes |
OS requirement | Windows 2000 , Windows XP , Windows Vista, Windows 7 |
Web browser | Microsoft® Internet Explorer® 6.0 or later |
CPU requirement | Intel Pentium 4 1.8GHz or above |
RAM requirement | 1GB or above ,Independent Display Card |
Protocols | IP, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, Telnet, RTSP, RTCP, ONVIF Profile S, ICMP, IGMP ; LILIN ( MLP1,MLP2 ) / PELCO-D / PELCO-P / Panasonic / Kalatel。LILIN ( MLP1,MLP2 ) / PELCO-D / PELCO-P / Panasonic / Kalatel |
Mobile Application | Integrated to LILIN mobile app (LILIN Pro) ; iPhone, iPad, Android support |
Video Management | ONVIF Profile S ; LILIN CMX3.6 NAV 1.0 ; Third party VMS through LILIN HTTP API |
Video Display | LILIN Universal ActiveX & LILIN Java Applet |
OS | Embedded Linux 2.6.32 |
Audio | 2-way audio , G.711 / PCM |
Alarm Input / output | 3 input [ Alarm in 1 − 3 ( NC / NO ) (TTL 5VDC)], 1 output ( Alarm out NC / NO ) (0.5A 120VAC,1A 24VAC) |
Operating temperature | -10°C〜+ 50°C ( 14°F〜122°F ) |
Operating humidity | 0%〜90% |
Sync. Mode/ Synchronization | Internal / line lock selectable |
System | PAL |
Dimensions | Ø 155 mm x 245 mm |
Weight | 2300g approx. |
Power Supply | AC100〜240V |
Power Consumption | 15W |
Downloads
Classification | Description | Date | File Size | Downloads |
Catalogue | Catalogue-IPS9364 IPS9368 | 2023-07-12 | 889KB | |
A&E | IPS9364 IPS9368 A&E | 2023-05-30 | 215KB | |
Installation Guide | PTZ Indoor camera Quick Installation Guide (936/926 series) | 2023-05-30 | 5,215KB | |
Image | High-Resolution Image | 2023-05-30 | 1,787KB | |
Manual | D1 IP Cameras Instruction Manual | 2023-05-30 | 1,150KB |
Accessories
-
BTE08W
Launched
-
BTR09W
Launched
-
BTR10W
Launched
-
BCD01S
Launched
-
BCR02W
Launched
-
BCR03W
Launched
-
BCR04W
Launched
-
BCR05W
Launched
-
BCR05W-V1
Launched
-
BCR06W
Launched
-
BCR06W-V1
Launched
-
BTD01W
Launched
-
BTD02W
Launched
-
BTD04W
Launched
-
BTD04W-V1
Launched
-
BTE02S
Launched
-
BTE07K
Launched
-
BTR03S
Launched
-
BTR06S
Launched
-
BTR07W
Launched
-
BTR08W
Launched
-
BTR08W-V1
Launched
-
BTS02S
Launched
-
BTS03W
Launched
-
BTS06W
Launched
-
PIH-510CPM
Launched
-
PIH-5208HBW
Launched
-
PIH-5208LBW
Launched
-
PIH-520HBW
Launched
-
PIH-520LBW
Launched
-
PIH-520LW
Launched
-
PIH-76WM
Launched
-
PIH-76WMW
Launched
-
PIH-CPM
Launched
-
PIH-Z6W
Launched
