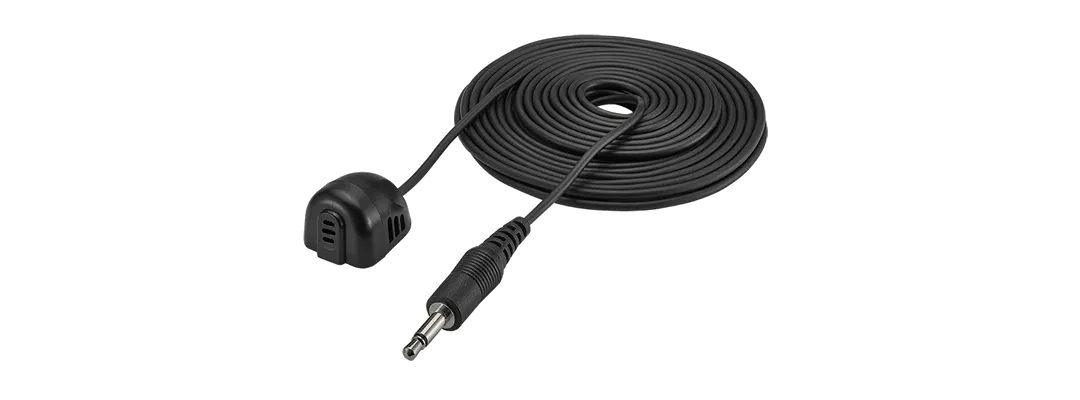

CONDENSER MICROPHONE
Model：MIC02
Launched
Features
- 3.5mm connector for IP cameras with Line IN.
- Omnidirectional condenser microphone that covers a wide angle when recording.
- -40dB high sensitivity for clear sound.
- 5m shielded cable that reduces signal interference.
Specifications
| Model | MIC02 |
| S / N Ratio | More than 58dB |
| Impedance | Low ( 2.2K ohm Max.) |
| Directional | Omnidirectional |
| Microphone Type | Electret Condenser Microphone |
| Sensitivity | -40±4dB(Omni) At 2.0 V, 2.2K Ohm, 0dB=1V/Pa 1KHz |
| Microphone Diameter | Ø9.7 × 6.7mm |
| Max. Operation Voltage | 6 V |
| Standard Operation Voltag | 2.0 V |
| Frequency | 100 - 10KHz |
| Current consumption | 0.5mA (Max.) |
| Wire Spec. | Connect : Ø 3.5mm straight plug |
| Wire Spec. | Wire : Ø 2.1mm PVC |
| Wire Spec. | Wire Breaking Strength：Breaking shall not less than 5KGs |
| Wire Spec. | Total Resistance：Shall not exceed 0.3ohm per meter |
| Operating temperature | -20 - 80℃ |
| Dimensions | Body : 15.5mm×25mm×19mm Wire : 5M±5% |
| Weight | 50g |
Downloads
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Catalogue-MIC02 | 2023-07-12 | 1,190KB |
