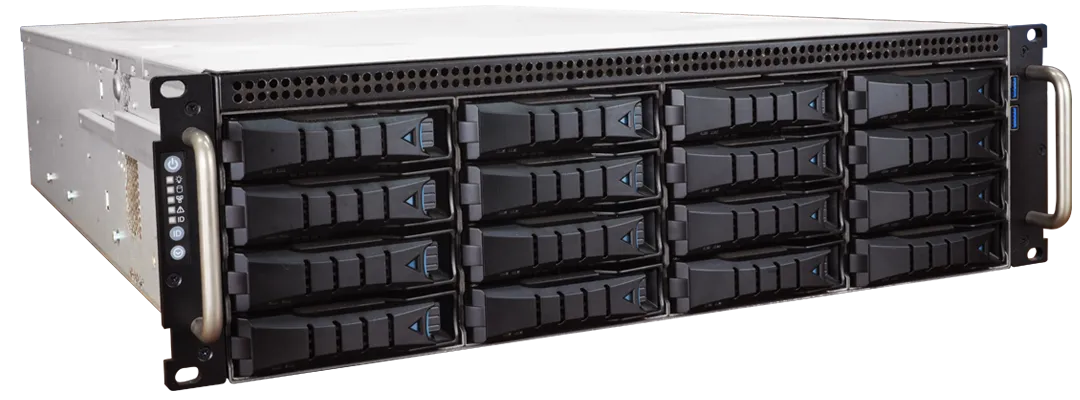

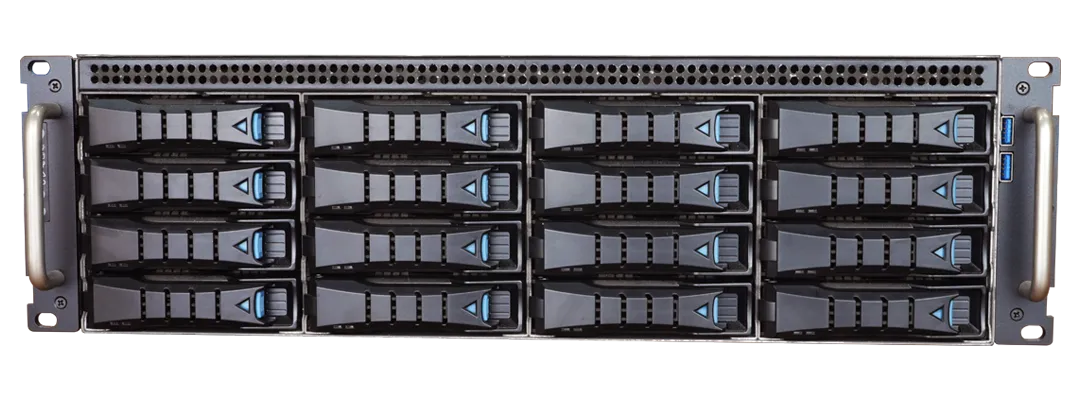

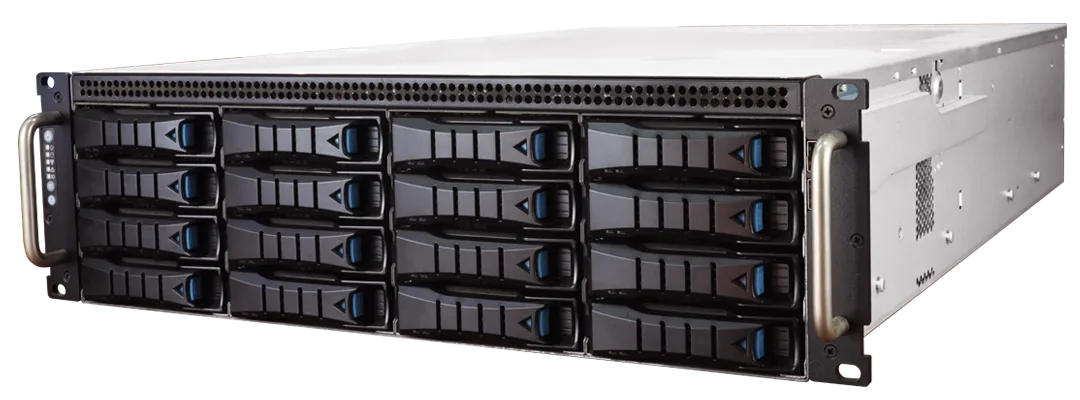

NAV 72CH Recorder

Model:NAV16072B

EOL

Features

  • Up to 72 channels 1080P/3M/4M/5M/8M/12M Network streaming, recording
  • built-in 1 × 500GB 2.5 Inch SATA SSD (OS)
  • Support up to 16 × Hot-swap 3.5 Inch SATA HDD (recording)
  • Support failover up to 36 channel per server
  • Dual streaming decoding mode supported
  • 2 monitors support up to 36 channels in total (480P 15fps)
  • Support multi-channels synchronized playback (remote or local)
  • Support Fisheye camera dewarping
  • Built-in dual port Gigabit Ethernet, RJ-45 × 2
  • Redundant Power Supply
  • 3U dimension for rackmount cabinet
  • LSI SAS 9361-8i RAID

Alternative models

  • NAV16072E

Description

LILIN NAV16072B 72channelsrecorder supports LILIN IP cameras, PTZ dome IP cameras, DVRs, and NVRs. The recorder features up to 72channels 1080P/3M/4M/5M/8M/12M Network streaming, recording The recorder is equipped with hardware RAID. It has built-in dual port Gigabit Ethernet and supports 2 monitors. Multi-channels playback for remote or local NAV, failover, video archive, and video sync are supported NAV16072B is capable of continuous and schedule recordings. Supports alarm detections including motion, alarm, audio, IVS, and ANPR (Optional) for triggering various alarm outputs. NAV16072B also support up to 1080P 120FPS and 4K 30FPS video streams. Simultaneous playback for 36-ch, 2 monitors support, camera groupings, authentication, two-way audio, and dual-streaming provide extra flexibilities for the video management system. Supports the flexibility of quickly adding devices easily.
