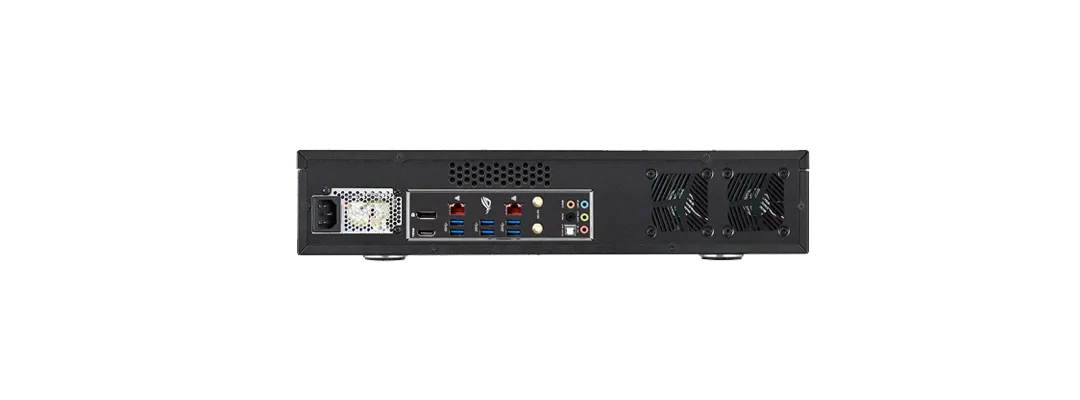

NAV Facial Recognition Recorder
Model：NAV2036F
EOL
Features
- Up to 4 channels 1080P network streaming, recording, and display
- built-in 1 × 500GB 2.5 Inch SATA SSD (OS)
- Support up to 3 x 3.5 Inch SATA HDD (recording)
- Dual streaming decoding mode supported
- 1 monitor supported, up to 4 channels video display
- Support multi-channels synchronized playback (remote or local)
- Support Fisheye camera dewarping
- Built-in dual port Gigabit Ethernet, RJ-45 × 2
- Built-in 500W Power Supply
- 2U dimension for rackmount cabinet
- Facial recognition for access control, time and attendance, denial list, and VIP greeting management
- 10,00 people,10,000 photos db
- Up to 4 people faces per channel
- Batch photos quick import
- Support Exclusion list, white list, black list and other 123 group, each can trigger different alarm output.
- Up to 93.7% recognition rate at 200 people DB
Discontinued date
- February. 26 , 2021
Alternative models
- NAV5004F
Description
LILIN facial recognition recorder is based on LILIN NAV Enterprise and Corporate platforms for access control and VIP greeting systems. Facial recognition system detects a face from a camera and compares its photo face db from the denial list and VIP list for recognition. Based on the denial list and VIP list, it can trigger related alarm action output(s).
It is built-in dual port Gigabit Ethernet, and dual monitors. It also supports multi-channels playback for remote or local NAV. Failover, video achieve, and video sync are supported
LILIN is the leading CCTV provider for video surveillance including number plate recognition, and facial recognition. LILIN world-class facial recognition accuracy, flexibility, and ease-of-use make Navigator software the right choice for retail, access control, time and attendance, surveillance, denial list/VIP greeting management, and other applications. Dimensions 88 (H) × 438 (W) × 451 (D) mm
Specifications
| Model | NAV2036F |
| Network video support | LILIN IP camera, LILIN IP camera over HTTPS, LILIN Fisheye camera, LILIN IP speed dome, LILIN DVR/NVR, LILIN DHD recorder, NAV live streaming, P2P live streaming, ONVIF camera, manual RTSP, screen capture, USB video input, picture capture |
| Chassis | 2U Chassis |
| IP Video Input | Up to 4 channels 1080P |
| Input(NAV Facial Recognition Recorder) | Up to 4 channels 720P/1080P, 15fps/30fps |
| Network video Format | H.264 / H.265 / MJPEG |
| Maximum Network Throughput | Upload: up to 500Mbps, Download: up to 500Mbps |
| Internal HDD / Swap Drive Bay | built-in 1 × 500GB 2.5 Inch SATA SSD (OS) Support up to 3 x 3.5 Inch SATA HDD (recording) |
| Video input (Support quantity) | Max. 4 channels |
| Camera name | 20 characters |
| Channel editing | Mouse drag-n-drop |
| Digital zoom | Yes, ePTZ supported |
| Privacy Mask | Supported |
| Remote Live Video | Yes, web and NAV Client |
| HDMI output | 1 × HDMI Port 1.4b, (4096 × 2160@24Hz) |
| DisplayPort output | 1 × DisplayPort 1.2, (4096 × 2304@60Hz) |
| Split Screen | 4, 9, 16, 25, 36 |
| Dual stream technology (Video output) | Multi-channel displays D1 and full screen displays 1080P |
| Multi-screen (Video output) | 1 monitor support up to 4 channels |
| Application/ Recording Mode | Alarm, motion, schedule, and manual |
| Recording schedule | 7 days × 24 hrs time table, recording mode configurable |
| Recording resolution & framerate | 1080p@30fps, and ROI recording supported |
| Alarm recording | Remote digital input, remote IVS detection, remote face detection, remote tamper detection, remote audio detection, external IO, motion detection, NAV CGI Triggering, video loss detection, speed measurement detection, ANPR detection, facial recognition, remote LPR detection, QR code detection, aida behavior detection |
| Audio Recording | Yes |
| Circular recording | Yes / size customizable |
| Limited recording | Yes / days customizable |
| Failover | Supported |
| Video Archiving | Yes |
| Low bitrate recording | Yes |
| Remote network NAS | Support NAS (SMB/CIFS), iSCSI |
| Playback Search | Date, time, Smart search, Alarm search, POS, ANPR search, Face search, Face trace search (in FR server only), Tagging search |
| Playback resolution and framerate | Max 1080p@30 fps |
| Playback Speed | Fast Rewind: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X Fast Forward: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X |
| Backup / Video input | Max. 4 channels, AVI & MP4 file format supported |
| Digital watermark (Video tamper resistance) | support digital watermark feature to ensure the backup footage is not got forged and modified |
| Remote video (Playback) | NAV Server / Navigator Client / DVR / NVR / IP camera SD card supported up to 4 channels |
| Alarm Management | Play audio file, send email notification, PTZ preset, digital output triggering, full screen, post alarm record, pre-alarm record, advanced alarm digital output, send customizable HTTP POST CGI URL to third party device, alarm ACK, alarm snapshot, text overlay, App cloud push notification, NCC TV wall ACK, NCC eMap Center Alarm, NCC play sound, NCC global alarm setting, all these action can be automatic or scheduled |
| Alarm recording(Alarm / event) | Pre-alarm:1 ~ 10 seconds and post-alarm: 1 sec ~ 59 minutes |
| Alarm scheduling | Up to four alarm tables with AND logic |
| Alarm event actions | Various alarm log including video loss, stop recording, schedule, logon, operation log |
| Alarm Output | Controllable via IP cameras |
| Video archiving & sync. | Individual camera configurable, scheduling and instant archiving, sync recording data with NAV server / NVR / DVR / IP camera SD card. |
| Keyboard Keypad | PIH-931D keyboard controllable via rs-485 to usb converter for PTZ, ePTZ, and ROI features |
| Audio | PCM/G.711/AAC, two-way audio, audio recording |
| POS | Third party TCP/IP/ RS-232 / Bluetooth supported / HID USB Barcode scanner |
| Protocols | ARP / TCP/IP / RTSP / ONVIF / HTTP / HTTPS / SMTP / DNS / PPPoE / SDDP |
| Mobile Application | LILIN Pro, iPhone and Android |
| IP Scan | Supported, easy-to-setup for IP address |
| VMS support | Support NAV Client software |
| eMap | Supported |
| eMap live monitoring | Each map can see 64 live video at the same time |
| Auto Switch to the Map of Alarm Event | Supported |
| Snapshot | Motion detection / external alarm / audio detection alarm / face detection |
| Alarm Event Actions (Accessories) | Digital output controllable, snapshots, and alarm popup |
| (eMap)Central management | Centralized monitoring channels from multiple server |
| (eMap)Online Maps | Google map and Baidu map up to 128 eMap, GPS devices supported |
| Number of Mark for Online Map | Each online map can support 5000 camera mark |
| Number of Mark for Offline Map | Each offline map can support 500 camera mark |
| CPU | Intel® Core™ i7-10700 |
| RAM | 16GB (2 × DDR4 8GB) |
| Chipset | Intel® H410 |
| Display card | Intel® UHD Graphics 630 |
| Ethernet Ports | 2 × RJ-45 1GbE |
| Audio (Hardware) | 5 × Audio jack(s), 1 × S/PDIF |
| Rear panel USB port | 5 × USB 3.1 , 1 × USB Type-C |
| Front panel USB port | 1 × USB 3.0 |
| Cooler | 2 × 60mm rear exhaust fans |
| SSD HDD | built-in 1 × 500GB 2.5 Inch SATA SSD (OS) Support up to 3 x 3.5 Inch SATA HDD (recording) Note: Do not use WD Purple HDDs for NAV HDD installation. Please use 7200RPM WD Red Pro for non-RAID installation, WD (Gold) Enterprise HDDs for RAID installation, or other Enterprise HDDs |
| Languages | English, Traditional Chinese, Spanish, German, French, Russian, Japanese, Portuguese, Italian, Simplified Chinese, Slovenian, Czech, Hungarian, Turkish, Arabic, Persian, Bengali, Vietnamese |
| OS | Windows 11 Enterprise SAC |
| Time sync | Daylight saving time by Windows OS |
| Power Consumption | 500W |
| Power Supply | 110V ~ 240V |
| Operating Temperature | 10°C ~ 40°C(50°F ~ 104°F) |
| Storage Temperature | 0°C ~ 70°C(32°F ~ 158°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Dimensions | 88 (H) × 438 (W) × 451 (D) mm |
| Color | Black |
| Weight | 21.00 lbs (9.52kg) |
| Recognition Speed | 6~8 recognitions per second for a camera |
| Number of channels | 4 cameras up to 15 recognitions / sec |
| Number of faces | Up to 4 faces per picture |
| Minimum face photo pixel requirement | 80x80 pixel: 70% confidence rate, 300x300: 80% confidence rate, 450x450 pixel: 90% confidence rate |
| Video resolution supported | 720P, 1080P |
| Maximum people detection allowed | 1000 people, 10000 photos db |
| Face training database | up to 10 pictures per person |
| Recognition rate | 93.7% at 200 people DB, recognition rate might drop and recognition rate might increase for big face db. |
| Detectable face angle | Up and down +/-15 degree, left and right +/-15 degree |
| Environment minimum Lux | 450Lux～1000Lux |
| Face photo db | Batch photos import |
| Face detected for alarm triggering | Full screen, OSD text, digital output triggering, buzzer, PTZ preset |
| Face lists | VIP list, unauthorized list, guest list |
| Guest list | Guest list allows added into face database |
| Schedule | 4 scheduling tables for alarm outputs and DO triggering |
| Camera supported | ONVIF IP camera and RTSP stream |
| Video recording | 4 channels face recognition |
Downloads
| Classification | Description | Date | File Size | Downloads |
| Application Note | NAV HDD Support List | 2024-03-14 | 277KB | |
| Catalogue | Catalogue NAV2036F | 2023-07-12 | 763KB | |
| Software | Navigator Control Center Version 2.0.0.210 | 2023-05-30 | 230,180KB | |
| Software | Navigator Software Version 2.0.0.210 | 2023-05-30 | 305,774KB | |
| Manual | Navigator HD 2.0 Facial Recognition & VIP Greeting User Manual | 2023-05-30 | 1,936KB | |
| Manual | Instruction Manual NAV2036F | 2023-05-30 | 839KB | |
| A&E | A&E NAV2036F | 2023-05-30 | 243KB |
