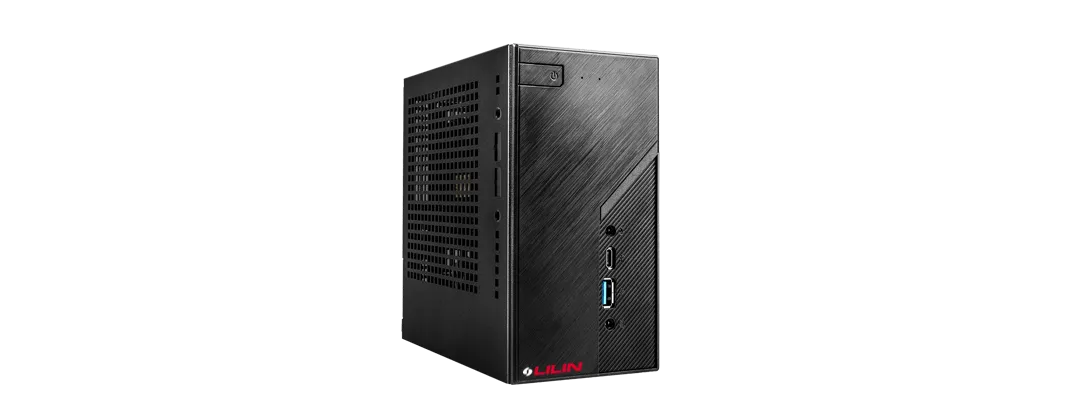

Aida Mask Detection Server

Model：NAV6001AI-M

EOL

Features

Support 1 channel mask detection
Mask Detection
Up to 4 channels 1080P network streaming, recording, and display
Each channel can support up to 6 detection per second
Ideal for lounge, factory lobby
built-in 1 × 500GB 2.5 Inch SATA SSD (OS)
built-in 1 × 1TB 2.5 Inch SATA HDD (recording)
Dual streaming decoding mode supported
Single screen can support up to 1 channels video display
Support multi-channels synchronized playback (remote or local)
Built-in Gigabit Ethernet Port, RJ-45 × 1
Built-in 120W Power Supply

Description

LILIN NAV6001AI-M is an AIDA Mask Detection Server dedicated to identify in real time if mask rules are respected by the public, it can be used in mall, company, school or any area where there can be public gathering occurring. If the server detect somebody not wearing a mask, it can trigger an audio or physical alarm to notify security guard on site.

Specifications

NAV6001AI-M

Model	NAV6001AI-M
Network video support	LILIN IP camera, LILIN IP camera over HTTPS, LILIN Fisheye camera, LILIN IP speed dome, LILIN DVR/NVR, LILIN DHD recorder, NAV live streaming, P2P live streaming, ONVIF camera, manual RTSP, screen capture, USB video input, picture capture
Chassis	MINI PC
IP Video Input	Up to 4 channels 1080P
Network video Format	H.264 / H.265 / MJPEG
Maximum Network Throughput	Upload: up to 500Mbps, Download: up to 500Mbps
Internal HDD / Swap Drive Bay	built-in 1 × 500GB 2.5 Inch SATA SSD (OS) built-in 1 × 1TB 2.5 Inch SATA HDD (recording)
Video input (Support quantity)	Max. 4 channels
Camera name	20 characters
Channel editing	Mouse drag-n-drop
Digital zoom	Yes, ePTZ supported
Privacy Mask	Supported
Remote monitoring (Video input)	Yes, web and NAV Client
HDMI output	1 × HDMI Port 1.4b, (4096 × 2160@24Hz)
DVI / VGA output	1 × VGA Port, (1920 × 1080@60Hz)
DisplayPort output	1 × DisplayPort 1.2, (4096 × 2304@60Hz)
Multi-screen (Video output)	1 monitor support up to 1 channels (480P 15FPS)
Application/ Recording Mode	Alarm, motion, schedule, and manual
Recording schedule	7 days × 24 hrs time table, recording mode configurable
Recording resolution & framerate	Max 1080p@120 fps, and ROI recording supported
Alarm recording	Mask detection
Audio Recording	Yes
Circular recording	Yes / size customizable
Limited recording	Yes / days customizable
Video Archiving	Yes
Low bitrate recording	Yes
Remote network NAS	Support NAS (SMB/CIFS), iSCSI
Playback Search	Name, time, event, POS SmartSearch, motion SmartSearch, plate search, record tagging
Playback resolution and framerate	Max 1080p@120 fps
Playback Speed	Fast Rewind: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X Fast Forward: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X
Backup / Video input	Max. 4 channels, AVI & MP4 file format supported
Digital watermark (Video tamper resistance)	support digital watermark feature to ensure the backup footage is not got forged and modified
Alarm Management	Play audio file, send email notification, PTZ preset, digital output triggering, full screen, post alarm record, pre-alarm record, advanced alarm digital output, send customizable HTTP POST CGI URL to third party device, alarm ACK, alarm snapshot, text overlay, App cloud push notification, NCC TV wall ACK, NCC eMap Center Alarm, NCC play sound, NCC global alarm setting, all these action can be automatic or scheduled
Alarm recording(Alarm / event)	Pre-alarm:1 ~ 10 seconds and post-alarm: 1 sec ~ 59 minutes
Alarm scheduling	Up to four alarm tables with AND logic
Alarm event actions	Various alarm log including video loss, stop recording, schedule, logon, operation log
Digital Output	Controllable via IP cameras
Video archiving & sync.	Individual camera configurable, scheduling and instant archiving
Keyboard Keypad	PIH-931D keyboard controllable via rs-485 to usb converter for PTZ, ePTZ, and ROI features
Audio	PCM, two-way audio, audio recording
POS	Third party TCP/IP/ RS-232 / Bluetooth supported / HID USB Barcode scanner
Protocols	ARP / TCP/IP / RTSP / ONVIF / HTTP / HTTPS / SMTP / DNS / PPPoE / SDDP
Mobile Application	LILIN Pro, iPhone and Android
IP Scan	Supported, easy-to-setup for IP address
VMS support	Support NAV Client software
eMap	Supported
CPU	Intel® Core™ i3-10100
RAM	8GB (1 × DDR4 8GB)
Chipset	Intel® H470
Display card	Intel® UHD Graphics 630
Ethernet Ports	1 × RJ-45 1GbE
Audio (Hardware)	1 x Head Phone with Mic Jack, 1 x Mic-In
Rear panel USB port	4 × USB 3.2 , 1 × USB 3.2 Type C
Front panel USB port	1 × USB 3.2 , 1 × USB 3.2 Type C
SSD HDD	built-in 1 × 500GB 2.5 Inch SATA SSD (OS) built-in 1 × 1TB 2.5 Inch SATA HDD (recording)
Languages	English, Traditional Chinese, Spanish, German, French, Russian, Japanese, Portuguese, Italian, Simplified Chinese, Slovenian, Czech, Hungarian, Turkish, Arabic, Persian, Bengali, Vietnamese
OS	Windows 11 Enterprise SAC
Time sync	Daylight saving time by Windows OS
Power Consumption	120W
Power Supply	110V ~ 240V
Operating Temperature	10°C ~ 35°C(50°F ~ 95°F)
Storage Temperature	0°C ~ 70°C(32°F ~ 158°F)
Relative Humidity	10% ~ 90% (non-condensing)
Dimensions	155 (H) × 155 (W) × 80 (D) mm
Color	Black
Weight	2.20 lbs (1.4kg)
