Pendant Mount Bracket with AC220V to AC24V transformer

Model：PIH-5203HB / PIH-5203HBW

Export-PDF

Contact US

Features

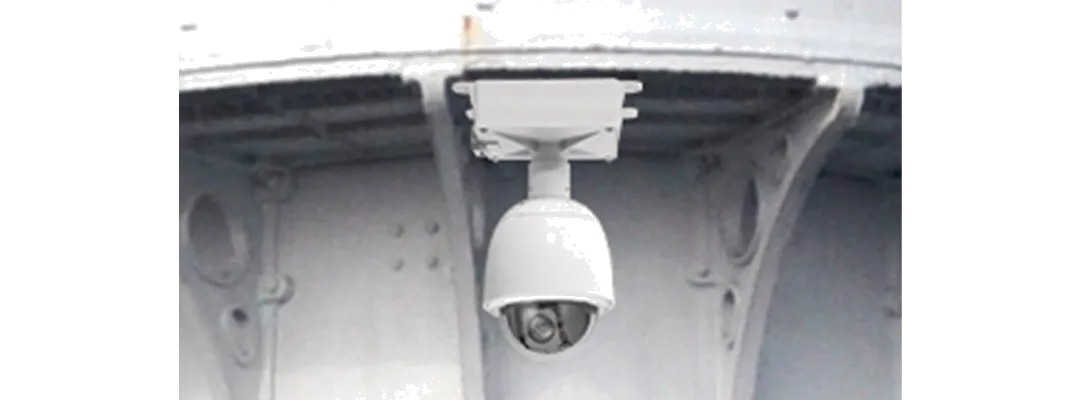

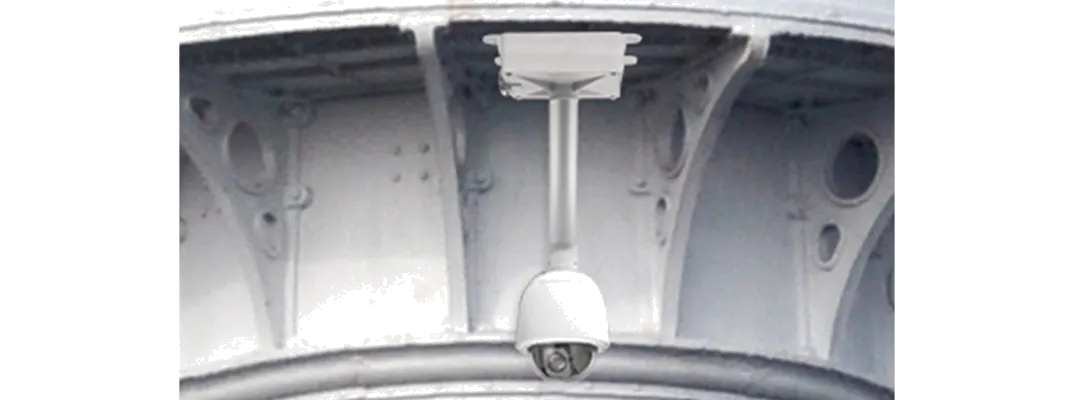

Pendant mount
Outdoor PTZ Camera
Construction: Bracket/Top - Aluminum
Dimension: 284(L)x204(W)x149.5(H)mm
AC220V in / AC24V 6A out
Weight: 4.6Kg

Specifications

Model	PIH-5203HB
Material/ Construction	Aluminum
Schematic Drawing	PSD4624EX20 / PSD4624EX30 / PSR5024EX20 / PSR5024EX30 / IPS4204EA / IPS4304EA
Dimensions	284(L)×204(W) x149.5(H)
Weight	4.6Kg
Power cable	60 cm
Color	Gray
AC Input	AC220V
DC Output	AC24V 6A

Model	PIH-5203HBW
Material/ Construction	Aluminum
Schematic Drawing	PSD4624EX20 / PSD4624EX30 / PSR5024EX20 / PSR5024EX30 / IPS4204EA / IPS4304EA
Dimensions	284(L)×204(W) x149.5(H)
Weight	4.6Kg
Power cable	60 cm
Color	White
AC Input	AC220V
DC Output	AC24V 6A

Downloads

Classification	Description	Date	File Size	Downloads
Image	3D DIAGRAM B5203HCSB	2020-05-04	848KB
Installation Guide	PIH-520Series Installation Manual	2019-12-10	653KB
Catalogue	Catalogue PIH-5203HB	2019-10-02	1,260KB
