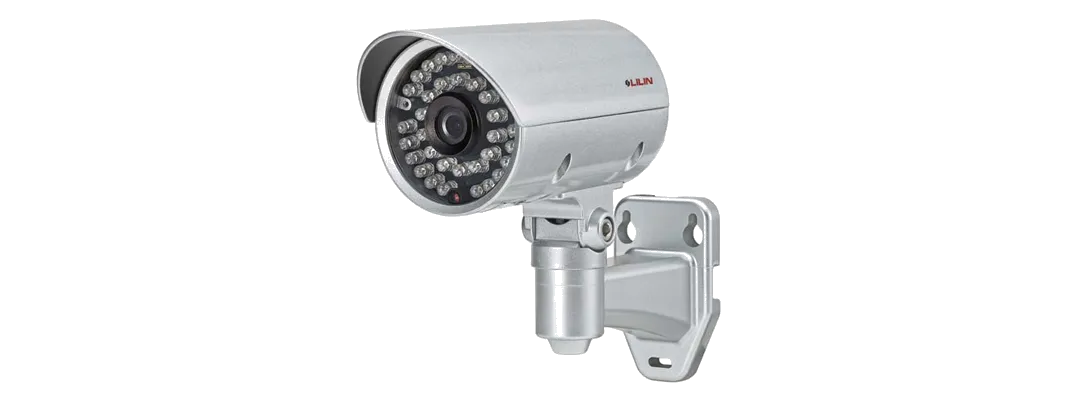

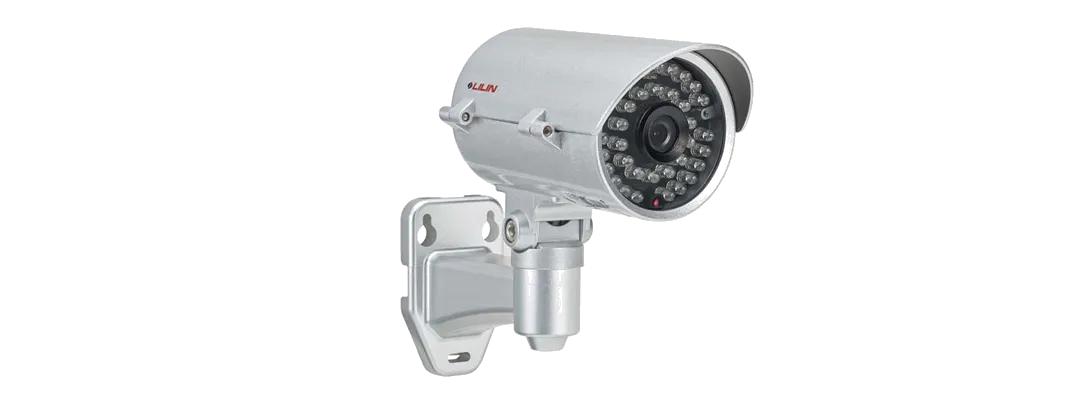

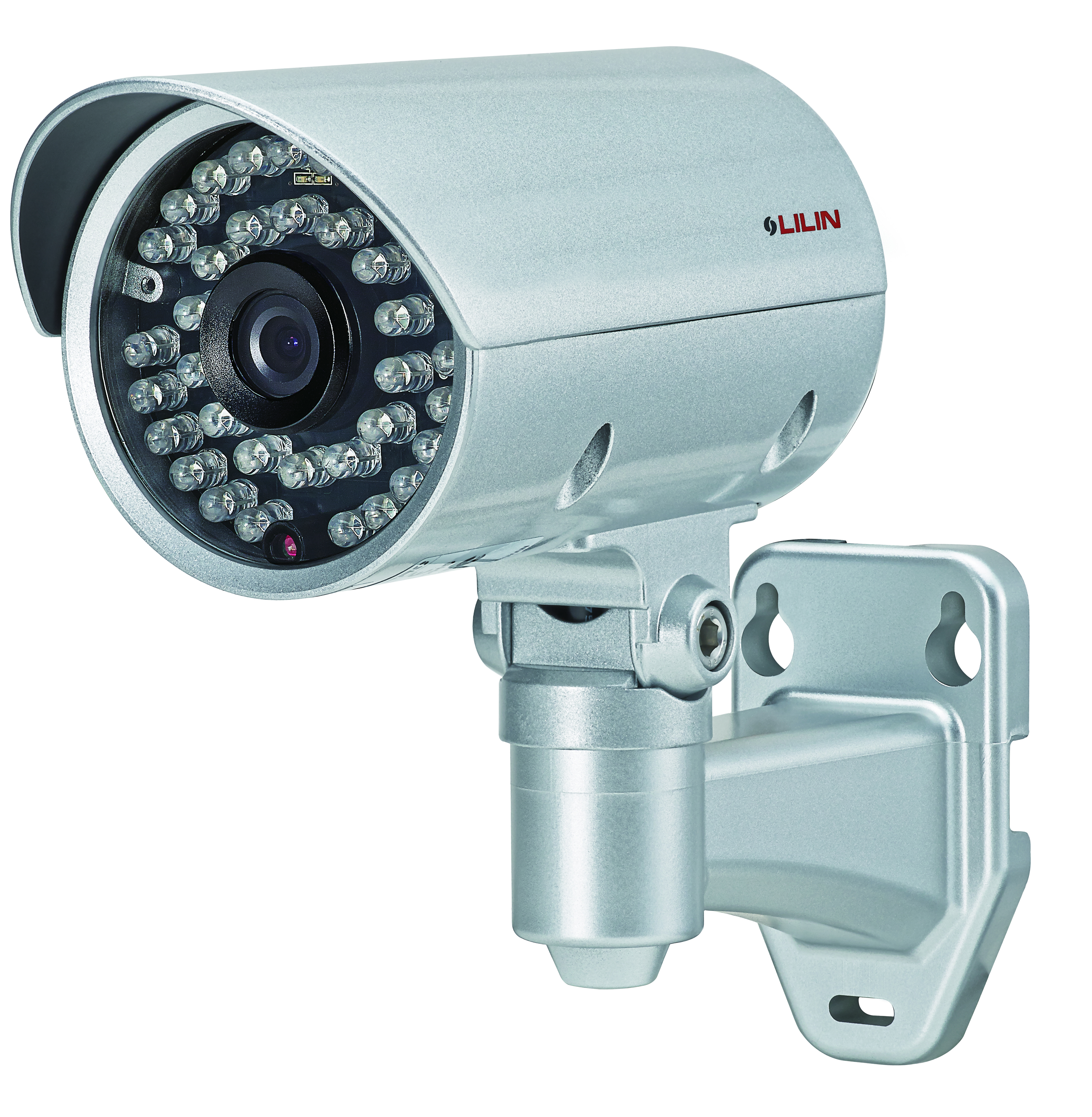

1080P Day & Night Fixed IR IP Bullet Camera
Model:SR7022E4 / SR7022E6
Features
- Full HD 2.0 megapixel MOS image sensor
- 60 FPS @ 1080P True H.264 AVC High Profile video compression
- H.264 and Motion JPEG multi-profile video streaming
- 3D Noise Reduction (MCTF)
- HDR function up to 120dB
- Defog function
- Digital PTZ supported
- Tampering / Motion detection alarm function
- High efficiency IR LED, radiant distance up to 30m
- Day & Night (IR cut removable)
- ONVIF Profile S supported
Alternative models
- H.265 Series / CV Series or Others
Description
LILIN S Series cameras – SR7022 is best-in-class IP camera, designed for a variety of outdoor and indoor applications. From LILIN’s powerful latest technology, the S Series cameras have an ultra fast frame rate of 60 FPS at 2 megapixel 1080P resolution, this results in crystal clear images. Its IP66-rated housing protects the SR7022 camera body against dust and rain. IP66 rating ensures operation under harsh weather conditions. Cameras are incorporated with a progressive scan MOS sensor with 0.03 lux at F1.6 low light mode capability, S Series camera – SR7022 is able to capture fast moving objects during daytime and nighttime. The S Series cameras support high performance H.264 and Motion JPEG compression technology, and offers smooth video quality up to 60 FPS at 60 FPS at 1080P. Using 60 FPS at 2 megapixel 1080P resolution, can be particularly beneficial when viewing moving objects to ensure pictures are kept sharp.
Specifications
Model | SR7022E4 |
Pick Up Element | 1/2.86-inch MOS |
Effective pixels | 1952 x 1266 |
Video Compression | H.264 (main & high profile); M-JPEG |
Resolution | 1080P(1920×1080) , 720p(1280 x 720) , D1(720 x 480) , CIF(352 x 240) |
Maximum Frame Rate | Dual-stream mode, H.264 : up to 60 FPS @ 1920 x 1080, Motion JPEG : up to 30 FPS @ 720 x 480 / HDR mode, H.264 : up to 30 FPS @ 1920 x 1080 , Motion JPEG : up to 30 FPS @ 720 x 480 |
Focal Length | 4mm |
Iris | F1.6 |
Angle of View | 84°(H), 42.5〫(V), 100.6°(D) |
Max IR distance | 30m |
Infrared LED Angle | 30.6〫 |
Video streaming | RTP / HTTP, RTP / TCP, RTP / UPP, Multicast Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth |
Video bitrate | 128Kbps to 12Mbps ; Frame rate and bitrate controllable on-the-fly VBR / CBR / GOP supported |
Peak wavelength | 850nm, high efficiency array |
Window / Glass Thickness | Ø65 Heat Resistant Glass |
Scanning System | Progressive scan |
Infrared Cut Filter | Colour (Day), Monochrome (Night), Auto, Schedule |
Min. illumination/Low Light Mode (Colour) | 0.07 Lux at F1.6 (Color);0.03 Lux at F1.6 (B/W) , 0 Lux with IR LED ON |
White Balance | Auto / Tungsten / Indoor / Fluorescents1 / Fluorescents2 / Outdoor1 / Outdoor2 |
Back Light Compensation (BLC) | On / Off |
Electrical Shutter | 1/30(1/25)s to 1/30000s |
Sense Up+ | Yes |
Auto Gain Control | 54 dB variable gain |
3D Noise Reduction | Off / 1 to 32 selectable |
2D WDR | Off / Auto / x2 / x3/ x4 (by normal mode) |
High Dynamic Range(HDR) | Up to 120 dB by HDR mode, 2 shutter line interleave |
Privacy Masking | Four independent areas |
Other functions | Sharpness, Image flip, Image mirror, Defog, Hue |
Encryption | Base64 HTTP encryption |
Access | Multiple user access levels with password protection |
IP address filter | Yes |
Multi IP address | Yes |
User accounts | 8 simultaneous users |
ePTZ & Digital Zoom | Yes, ROI (Region of Interest) is supported |
OSD (On-Screen Display) | Text overlay for date, time and camera name |
IVS (Intelligent Video Surveillance) | Motion detection, Tamper detection, Zone Entering, Direction detection, Zone crossing |
Alarm event triggers | Tampering / motion detection |
Alarm event actions | Yes |
CPU | Embedded SoC, 1.2GHz Dual ARM Cortex-A9 & 600MHz ARM11, 1GB DDR3,256MB flash memory |
Firmware | Firmware upgrade via HTTP |
Network Interface/Ethernet | 10/100/1000 Mbps Base-T (Tx), RJ-45 |
CE | Yes, EMI CLASS A |
FCC | Yes, EMI CLASS A |
OS requirement | Windows 2000、Windows XP、Windows Vista、Windows 7、Windows 8 |
Web browser | Microsoft® Internet Explorer® 6.0 and later |
CPU requirement | Intel Core 2 Duo E6400 2.13GHz or above |
RAM requirement | 2GB or above, Independent Display Card |
Protocols | IPv4, IPv6, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, SNMP, SIP, Bonjour |
Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
Video Management | ONVIF Profile S / LILIN NAV 5.0 / Third party VMS through LILIN HTTP API |
Video Display | LILIN Universal ActiveX & LILIN Java Applet |
OS | Embedded Linux 3.8.0 |
SD Card (recording) | Support Micro SD/SDHC/SDXC card for circular recording (card is not included) |
IP Rating | IP66 waterproof |
Operating temperature | -40℃ to 50℃ (-40℉ to 122℉) |
Dimensions | 82mm(W) × 72.5mm(H) × 154mm(D), Bracket :101mm(L) |
Weight | 600g approx. |
Power Supply | DC12V ±10% 。Power over Ethernet (IEEE 802.3af compliant) |
PoE | IEEE802.3af |
Power Consumption | DC12V, 10W / PoE, 11W |
Model | SR7022E6 |
Pick Up Element | 1/2.86-inch MOS |
Effective pixels | 1952 x 1266 |
Video Compression | H.264 (main & high profile); M-JPEG |
Resolution | 1080P(1920×1080) , 720p(1280 x 720) , D1(720 x 480) , CIF(352 x 240) |
Maximum Frame Rate | Dual-stream mode, H.264 : up to 60 FPS @ 1920 x 1080, Motion JPEG : up to 30 FPS @ 720 x 480 / HDR mode, H.264 : up to 30 FPS @ 1920 x 1080 , Motion JPEG : up to 30 FPS @ 720 x 480 |
Focal Length | 6mm |
Iris | F1.6 |
Angle of View | 57.6°(H), 31.4°(V), 67.3°(D) |
Max IR distance | 30M |
Infrared LED Angle | 30.6〫 |
Video streaming | RTP / HTTP, RTP / TCP, RTP / UPP, Multicast Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth |
Video bitrate | 128Kbps to 12Mbps ; Frame rate and bitrate controllable on-the-fly VBR / CBR / GOP supported |
Peak wavelength | 850nm, high efficiency array |
Window / Glass Thickness | Ø65 Heat Resistant Glass |
Scanning System | Progressive scan |
Infrared Cut Filter | Colour (Day), Monochrome (Night), Auto, Schedule |
Min. illumination/Low Light Mode (Colour) | 0.07 Lux at F1.6 (Color);0.03 Lux at F1.6 (B/W) , 0 Lux with IR LED ON |
White Balance | Auto / Tungsten / Indoor / Fluorescents1 / Fluorescents2 / Outdoor1 / Outdoor2 |
Back Light Compensation (BLC) | On / Off |
Electrical Shutter | 1/30(1/25)s to 1/30000s |
Sense Up+ | Yes |
Auto Gain Control | 54 dB variable gain |
3D Noise Reduction | Off / 1 to 32 selectable |
2D WDR | Off / Auto / x2 / x3/ x4 (by normal mode) |
High Dynamic Range(HDR) | Up to 120 dB by HDR mode, 2 shutter line interleave |
Privacy Masking | Four independent areas |
Other functions | Sharpness, Image flip, Image mirror, Defog, Hue |
Encryption | Base64 HTTP encryption |
Access | Multiple user access levels with password protection |
IP address filter | Yes |
Multi IP address | Yes |
User accounts | 8 simultaneous users |
ePTZ & Digital Zoom | Yes, ROI (Region of Interest) is supported |
OSD (On-Screen Display) | Text overlay for date, time and camera name |
IVS (Intelligent Video Surveillance) | Motion detection, Tamper detection, Zone Entering, Direction detection, Zone crossing |
Alarm event triggers | Tampering / motion detection |
Alarm event actions | Yes |
CPU | Embedded SoC, 1.2GHz Dual ARM Cortex-A9 & 600MHz ARM11, 1GB DDR3,256MB flash memory |
Firmware | Firmware upgrade via HTTP |
Network Interface/Ethernet | 10/100/1000 Mbps Base-T (Tx), RJ-45 |
CE | Yes, EMI CLASS A |
FCC | Yes, EMI CLASS A |
OS requirement | Windows 2000、Windows XP、Windows Vista、Windows 7、Windows 8 |
Web browser | Microsoft® Internet Explorer® 6.0 and later |
CPU requirement | Intel Core 2 Duo E6400 2.13GHz or above |
RAM requirement | 2GB or above, Independent Display Card |
Protocols | IPv4, IPv6, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, SNMP, SIP, Bonjour |
Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
Video Management | ONVIF Profile S / LILIN NAV 5.0 / Third party VMS through LILIN HTTP API |
Video Display | LILIN Universal ActiveX & LILIN Java Applet |
OS | Embedded Linux 3.8.0 |
SD Card (recording) | Support Micro SD/SDHC/SDXC card for circular recording (card is not included) |
IP Rating | IP66 waterproof |
Operating temperature | -40℃ to 50℃ (-40℉ to 122℉) |
Dimensions | 82mm(W) × 72.5mm(H) × 154mm(D), Bracket :101mm(L) |
Weight | 600g approx. |
Power Supply | DC12V ±10% 。Power over Ethernet (IEEE 802.3af compliant) |
PoE | PoE |
Power Consumption | DC12V, 10W / PoE, 11W |
